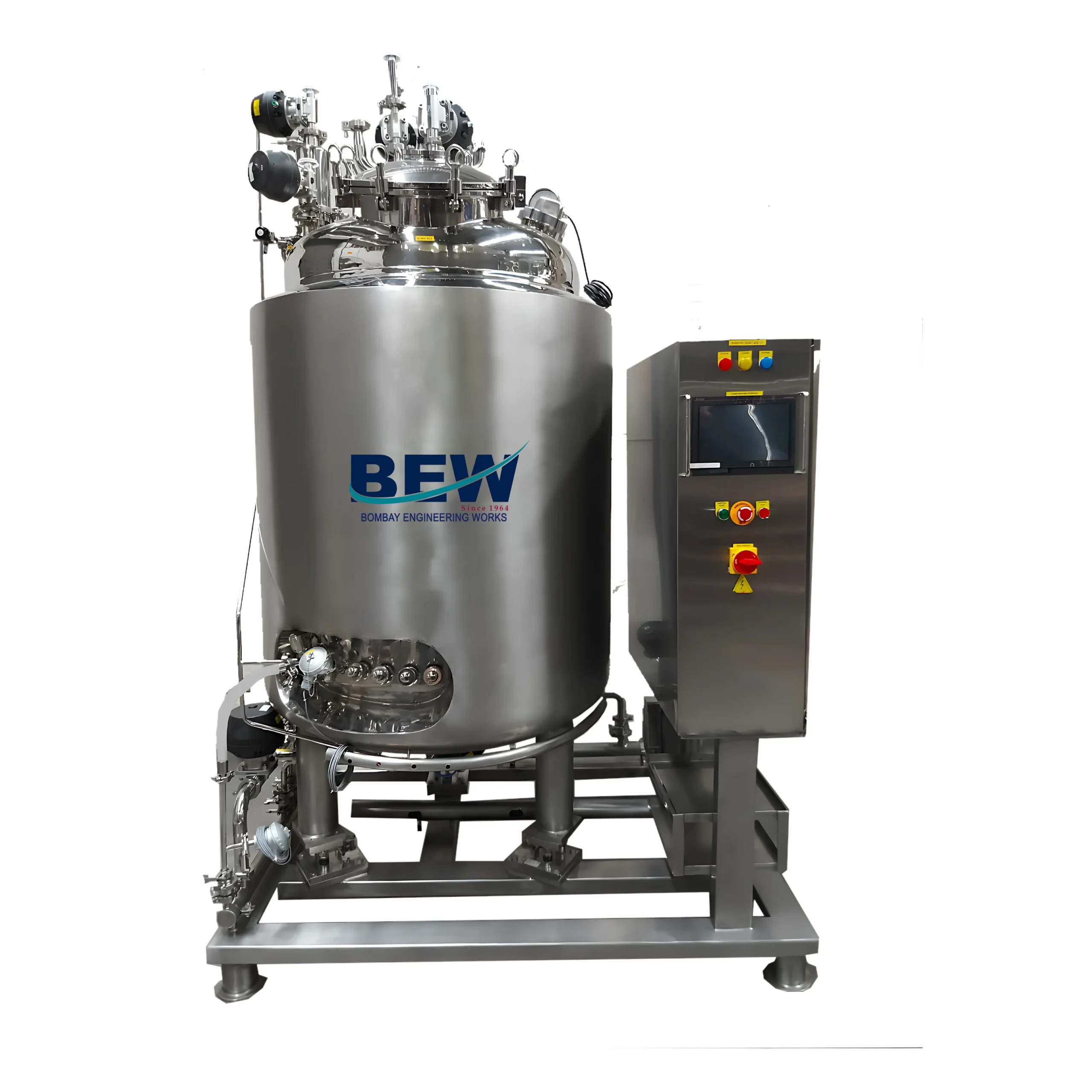

Sterile Manufacturing Vessel
Capacities: 50 liters to 500 liters for SVP & up to 10,000 liters for LVP.
Salient Features:
- GMP model with contact parts in SS316 L.
- Fully electropolished with skid mounting model.
- All sterile valves & diaphragm valves pneumatic.
- Online temperature, pH, conductivity, DO sensors.
- Sampling valve.
- Load cells, PLC operated panel, 21 CFR compliant.
- Magnetic stirrer & homogeniser for suspension batches.
- Complete system with holding vessel & filtration system.
