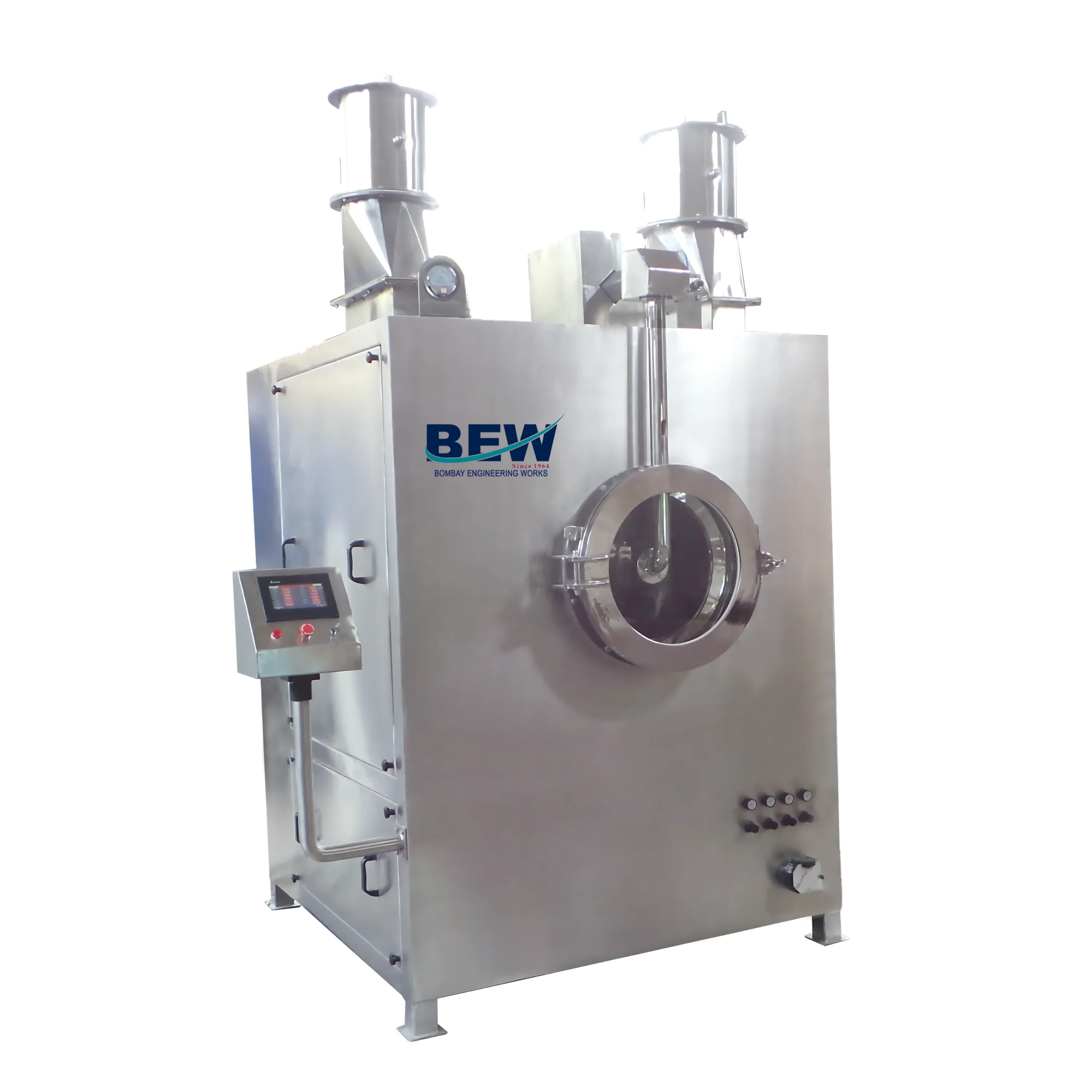

Autocoater
Salient Features:
- Film & sugar coating in one machine (Optional).
- Punched hole pan design: Faster drying. Short operation time
- 09. Auto coater model 66 & above can be provided with auto discharge system: Easy & clean.
- Explosion proof system for organic solvent available.
- Auto damper design for total isolation from outdoor reverse airflow: Easy control & regulate.
- 4. Auto control by PLC: Easy operation.
- Data recordable for the whole process: Easy for operator training.
- Special baffle design for even tablet mixing.
Description
AUTOCOATER Technical Specifications
| Model | BC15 | BC24 | BC36 | BC48 | BC52 | BC60 | BC66 |
|---|---|---|---|---|---|---|---|
| Capacity (kgs) | 3 | 10 | 75 | 150 | 225 | 350 | 500 |
| Pan diameter (mm) | 457 | 610 | 915 | 1220 | 1320 | 1575 | 1650 |
| Pan mouth diameter (m) | 200 | 300 | 380 | 460 | 460 | 500 | 500 |
| Pan speed RPM (variable) | 5-25 | 2-13 | 2-13 | 2-13 | 2-13 | 2-23 | 2-13 |
| Drive Motor HP (Flame Proof) | 1 | 1 | 2 | 3 | 5 | 7.5 | 7.5 |
| Length (mm) | 1020 | 1100 | 1350 | 1720 | 1900 | 1920 | 2370 |
| Width (mm) | 1000 | 1300 | 1450 | 1650 | 1950 | 2150 | 2300 |
| Height (mm) | 1550 | 1700 | 1900 | 2100 | 2335 | 2400 | 2500 |
| Process air volume (cfm) | 100 | 350 | 1250 | 2550 | 3600 | 5500 | 7500 |
| Hot air temperature (°C at 3 to 5 kg/cm² Steam Pressure) | 10°-90° C | 10°-90° C | 10°-90° C | 10°-90° C | 10°-90° C | 10°-90° C | 10°-90° C |
| Electrical power consumption (KW) | 6.5 | 7 | 8 | 12 | 15 | 27 | 32 |
| Electrical heating load (KW) | 3 | 9 | 36 | 48 | – | – | – |
