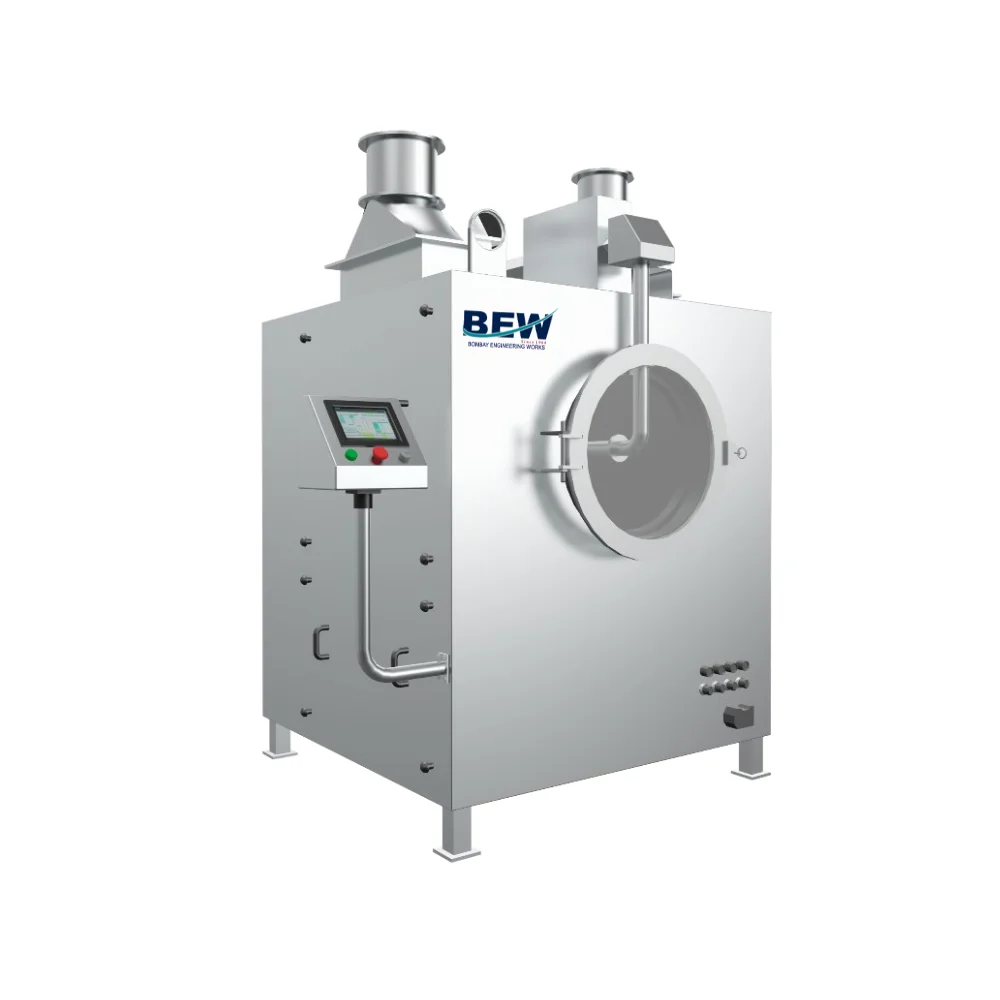

BOMBAY COATER
SALIENT FEATURES:
- Automated process
- Conforms to cGMP
- Flexible batch operations
- Product protective handling to prevent clipping of tablets
- Complete separation of production and technical area
- Extremely user-friendly software and operation through PLC
- Excellent mixing and tumbling by special design of baffles
- Made entirely of S.S. 316
- Advanced CIP system
- Treatment of exhaust for pollution-free operation
AVAILABLE CAPACITIES: 12″, 15″, 18″, 24″, 36″, 48″, 60“, 66″, 72″ & 96″ Diameter.
TECHNICAL SPECIFICATION:
| MODEL | BC 15 | BC 24 | BC 36 | BC 48 | BC 52 | BC 60 | BC 66 |
| Approximate working capacity in kgs. (depending on tablet shape & powder density) |
3 | 10 | 75 | 150 | 225 | 350 | 500 |
| Pan diameter (mm) | 457 | 610 | 915 | 1220 | 1320 | 1575 | 1650 |
| Pan mouth diameter (mm) | 200 | 300 | 380 | 460 | 460 | 500 | 500 |
| Pan speed RPM (variable) | 5-25 | 2-13 | 2-13 | 2-13 | 2-13 | 2-13 | 2-13 |
| Drive Motor HP (Flame Proof) | 1 | 1 | 2 | 3 | 5 | 7.5 | 7.5 |
| Length (mm) | 1020 | 1100 | 1350 | 1720 | 1900 | 1920 | 2370 |
| Width (mm) | 1000 | 1300 | 1450 | 1650 | 1950 | 2150 | 2300 |
| Height (mm) | 1550 | 1700 | 1900 | 2100 | 2335 | 2400 | 2500 |
| Process air volume (cfm) | 100 | 350 | 1250 | 2550 | 3600 | 5500 | 7500 |
| Hot air temperature (at 3 to 5kg/cm² Steam Pressure) | 10°C – 90°C | 10°C – 90°C | 10°C – 90°C | 10°C – 90°C | 10°C – 90°C | 10°C – 90°C | 10°C – 90°C |
| Electrical power consumption (KW) | 6.5 | 7 | 8 | 12 | 15 | 27 | 32 |
| Electrical heating load (KW) | 3 | 9 | 36 | 48 | – | – | – |
