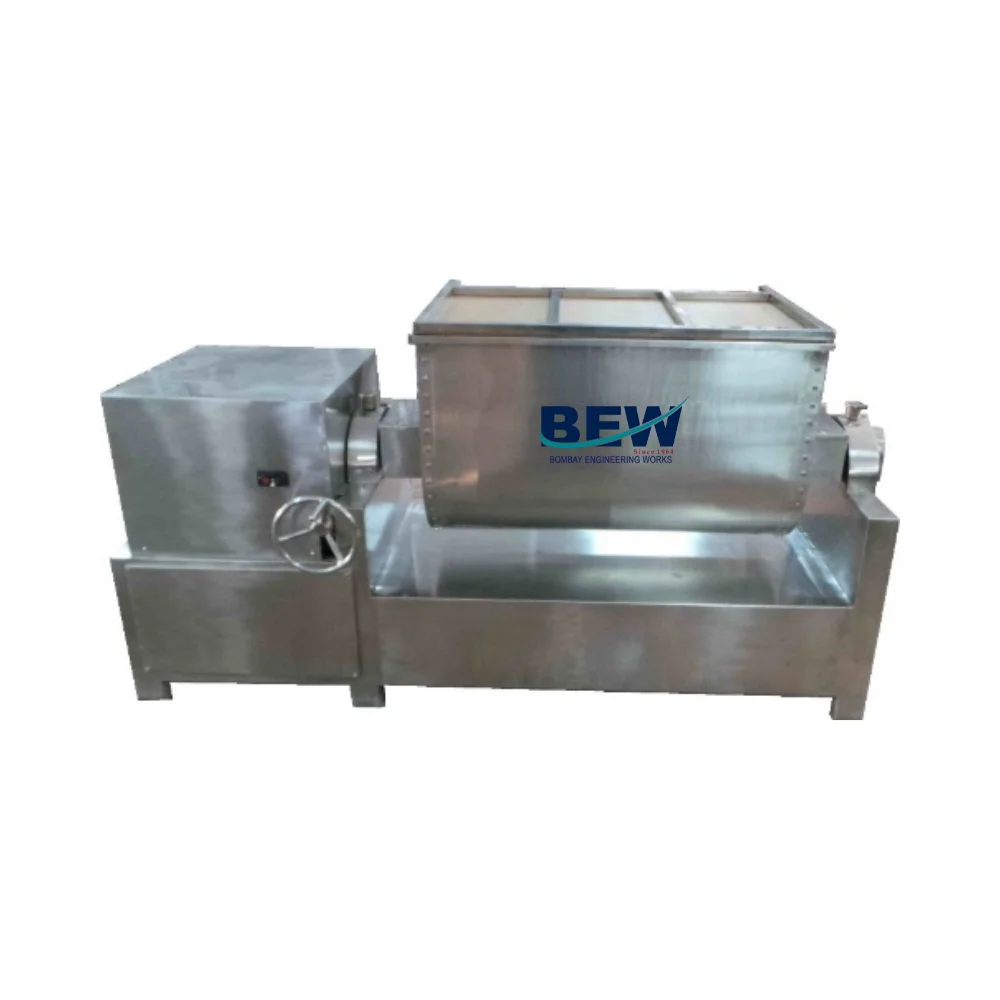

Mass Mixer
Salient Features:
- Suitable for mixing of dry & wet material.
- All contact parts in stainless steel S.S. 316 material.
- Paddles arranged on the shaft to give uniform mixing.
- Tilting arrangement, reversible switch, and safety switch to stop the mixer as soon as the cover is opened.
- Suitable seals provided at both ends of the trough to prevent black particles in the material.
- Flameproof motor and electricals available as optional.
- Motorized tilting system available as optional.
Related products

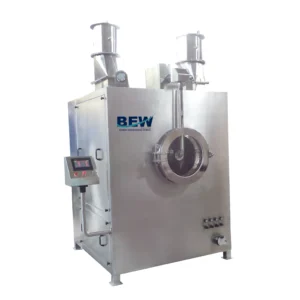

Autocoater
