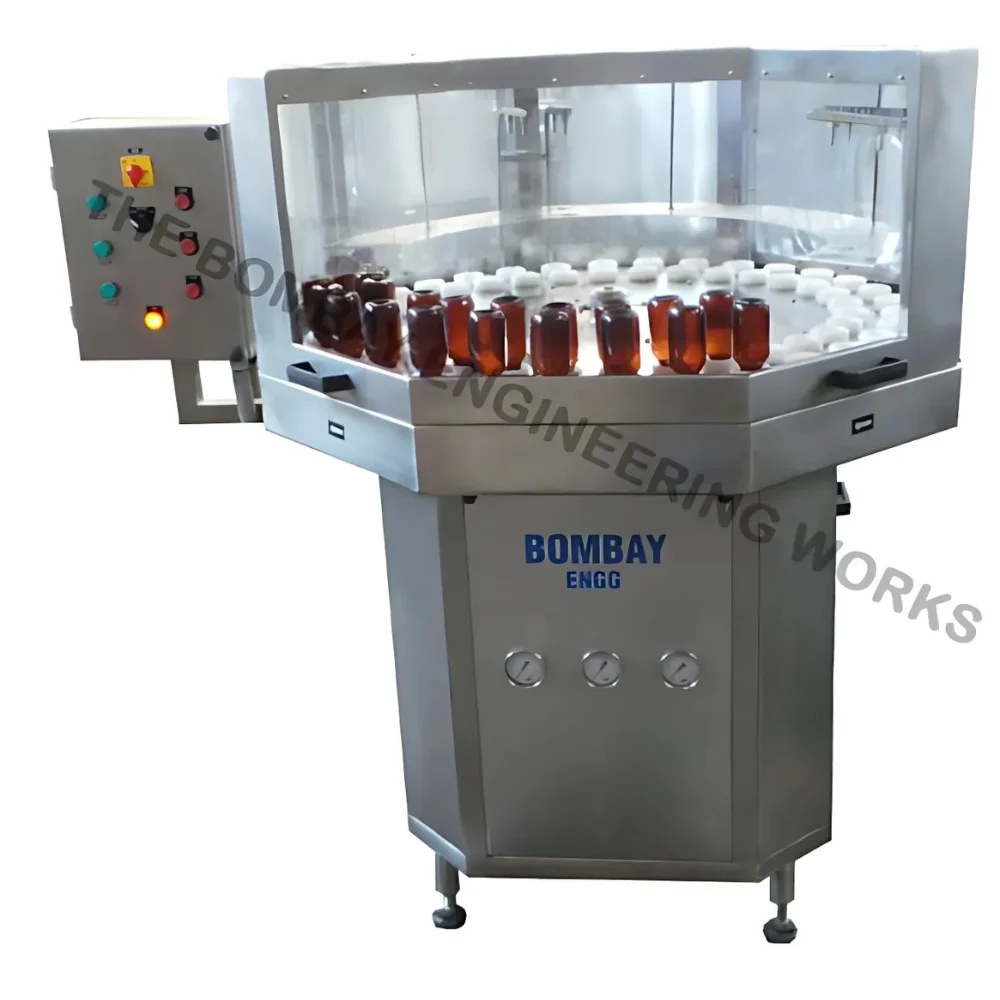

ROTARY BOTTLE WASHING MACHINE
ROTARY BOTTLE WASHING MACHINE/Bottle washing machine/bottle cleaning machine is a compact and highly efficient machine with an elegant look. This multifunctional multi featured machine meets the GMP requirements of washing glass and plastic bottles. The machine operates on the rotary principle with the “GENEVA” mechanism and requires manual loading and unloading of bottles.
Bombay Engineering’s rotary bottle washing machine is a compact and highly efficient machine with an elegant look. This multifunctional multi featured machine meets the GMP requirements of washing for glass and plastic bottles. The machine operates on the rotary principle with “GENEVA” mechanism and requires manual loading and unloading of bottles.
The bottles are loaded on the subsequent indexing part of the rotating platform and are cleaned in series of operations. Specially designed bottle holders are provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup-shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves enable the regulation of wash timings; it also sprays water when the bottle is stopped means ensure the saving of water and sequence of various washing media to suit specific requirements.
Operation :
The bottles are loaded on the subsequent indexing part of the rotating platform. They are cleaned in a series of operations. Specially designed bottle holders are provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup-shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings, it also spraying water when the bottle is stopped means ensure saving of water, and sequence of various washing media to suit the specific requirement
