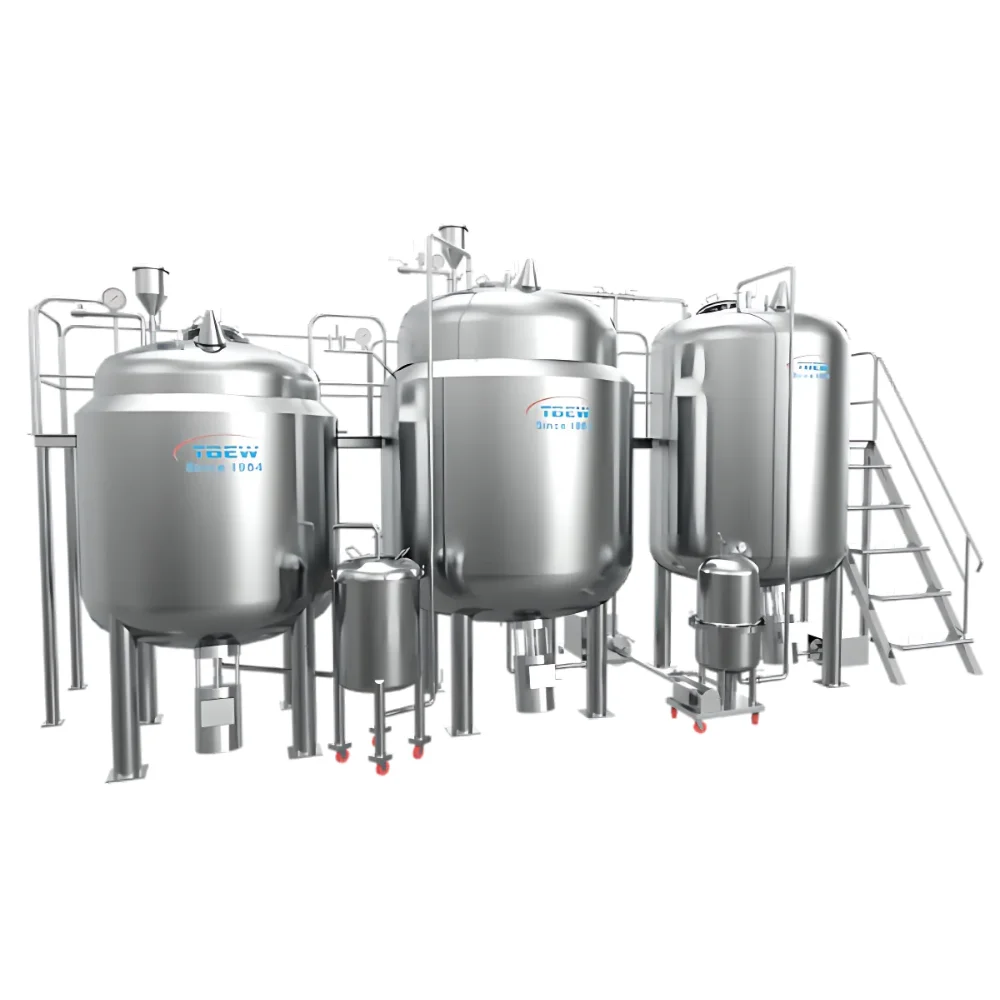

Automatic Liquid Oral Manufacturing Plant
Salient Features:
- cGMP model with contact parts in SS316.
- Fully automatic process untouched by human hands.
- Triple jacketed vessels suitable for heating and cooling.
- All fittings and valves are sanitary design.
- Options for top and bottom agitator assembly.
- 2 & 4 stage inline homogenizer provided.
- Sugar transfer system through vacuum.
- PLC based control panel, 21 CFR compliant.
- Electropolished pipeline.
- Ultrasonic level controller.
- Option for load cell.
- Option for automatic valves and utilities.
Related products

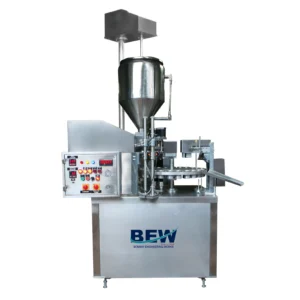

Automatic & Semi Automatic Tube Filling Machine
Automatic & Semi Automatic Tube Filling Machine
Linear tube filling machines are fully automac tube filling machine available in single head and double head models
Whatsapp Enquiry
Bottle Labeling Machine
Salient Features:
- S.S. GMP Model.
- No Bottles – No labeling system.
- Machine Advantage: No change parts are required to change any bottle & label sizes.
- In your particular case, offer a machine with a Touch code printer to print Mfg. Expiry, Batch No. etc.
- Labeling Capacity: 60 to 80 Bottles/Minute (Depending upon Labels & Bottles).
- Stepper Motor: 60 Kg/cm2
- Programmable MMI Unit: Standard (Our programming).
- A.C. Frequency drive for conveyor & pressing device.
- Total synchronized with stepper motor & A.C. motor with single speed variator port.
- Applicator height is adjustable as per customer requirement to change labeling position on the bottle.
- It has an inbuilt speed indicator & counter.
- No change parts are required to be changing any container & label sizes, hence only one-time investment.
Online Visual Bottle Inspection Machine
Online Visual Bottle Inspection Machine is a three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. The inspection table has a stainless steel structure with a moving S.S. slat chain. Design made out of S. S. square pipe & supported on adjustable bolts.
Online Visual Bottle Inspection Machine
The Bombay Engineering’s Inspection table consists of two (Single Side seating arrangements) or three (Double Side seating arrangements) tracks conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color.
Operation:
The central conveyor belt brings the bottle from the capping/washing machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. In turn, the operators pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any partials in the Liquid filled, sealed & breakage of the bottle. After inspection, the bottles are placed in the central track, which is transfer for labelling.
Whatsapp Enquiry
Pesticides Liquid Filling Machine
Salient Features:
- Automatic Liquid Filling Machine(4 Head)
- Machine speed: 40-50 bottle/min depends on bottle size
- Suitable for use in Cosmetics, Pharmaceuticals, Pesticides, Edible Oil, Lubricants etc.
- Available in GMP model Also
- Built-in Digital Product counter
- Imported Motors and Gears set
- Accuracy : ± 1 % At one Stroke
- SS-304 elegantly Matt finished machine
- Pneumatic stopping arrangements
- Proximity Sensor for Bottle sensing
- Available with HMI Display arrangement with PLC controlled
- Imported PLC for Better Functionality of HMI
- No bottle, Machine Stop with indication
- Voltage : 1-Phase, 230V, 50 Hz
- Product size: Up to 1000 ml
- Machine size: 1500*1000*800 mm
Planetary Mixer (VJHSE Type)
Salient Features:
- Suitable for mixing dry and wet powders & granules.
- Planetary motion agitators with scrapers.
- All contact parts are made out of S.S. 316 quality material.
- Compact design requires comparatively smaller floor space.
- Hydraulic lifting system for model 200 ltrs and above.
- Sturdy locking system for the bowl.
- Heavy construction & total vibration-free even during mixing. Stirrer with planetary motion.
- Flameproof model available as optional.
- PLC-based control panel available as optional.
Semi Automatic Capsule Filling Machine
We are offering a wide range of Semi Automatic Capsule Filling Machine. The Machine gives 25,000 to 30,000 capsules per hour and suitable for filling capsules of all sizes with powder, pellets & granules. It is comparable to the best because of its outstanding mechanical & functional features. This innovative design & precision manufacturing meets the requirements of cGMP. The Machine is an ideal choice in the SemiAutomatic Capsule Filling Machine available in the market. we provide different types of capsule filling machine
Bombay Engineering’s Semi-Automatic Capsule Filling Machine is designed for precision manufacturing requirements of modern pharmaceutical procedures. Capsule Filling Machine is suitable to fill size 00 to 5 capsules with powder, granules, or pellets. We have three different models that provide production output ranging from 25000 capsules per hour to 45000 capsules per hour. The machine provides a high degree of automation with higher levels of filling weight accuracy. The machine is made as per GMP standards having all Stainless-Steel covering. A machine has wide usage in R&D laboratories, Research Institutions, Herbal & Nutraceutical preparations, Unani & Ayurvedic medicines, Pilot batch productions, etc.
We can provide line equipment naming Capsule Conveying System, Capsule Polishing Machine, Dust Extractor, Damage Capsule Sorter, and Empty Capsule Ejector to make complete Semi Automatic Capsule Filling Line.
The Semi Auto. capsule filling machine allows for higher degree of automation when compared to manual capsule filling machine, thus ensuring higher level of filling weight accuracy. This capsule filling machine is deemed apt for the operation of capsule filling of varying sizes with powders, granules or pellets. With the GMP standards manufacturing methods employed for semi automatic capsule filling machine, it comes with an all Stainless-Steel covering. The machine is capable of yielding high outputs, i.e. 25000 to 47000 capsules/hour that depends on the size of capsule and operator’s skill-set. It performs the operation of on line polishing & sorting. Polishing of the tablets do not require operators and there is no need for a separate storage for filled capsule. The semi-automatic capsule filling machine has a four speed auger that allows it to operate and fill different types of powder & pellets. Filling table of the machine has variable speed that aids in achieving high dosage accuracy. Semi automatic capsule filler incorporates automatic capsule loading system to ensure faster, safer, closure and ejection of filled capsules. It also has an automatic drug hopper in-feed mechanism to eliminate any variation in weight and thus ensures in high productivity.
The semi-automatic capsule line is equipped with automatic Capsule conveying system that transports the completely filled capsules to capsule polishing machine from semi automatic capsule filling machine or where they need to convey. The process is completely automatic without human hands interactions with the help of a pump that sucks and move the filled capsules. automatic polishing machine for cleaning the capsules. It uses a rotating brush to carry out the operation. The polishing chamber comprises of a rotating spiral brush that removes the powder particles from the surface of the capsules after being fed. This chamber is also connected to the vacuum cleaner to suck out the de-dusted powder in order to clean the chamber. The semi auto capsule filling line also comprise of an empty capsule ejector. It checks whether the capsules are filled or not and ejects those capsules that are empty due to some machine error. Capsule ejection takes place due to the air force applied on the capsules. Damage capsule sorter removes the diametrically distorted capsules from the lot and only allows the perfect sized capsules to pass through. It is a part of semi-automatic capsule filling line machine and ensures only well proportionate & sized capsules.
The entire arrangement of the semi-automatic capsule filler is quite uncomplicated. At first, the capsules are transferred to the hopper whose size varies from 00 to 5. In a separate corkscrew driven hopper, the powders are again transferred that ensures a constant fill in every single capsule. Vacuum sucker is also utilized in this process for the purpose of sorting the capsules individually and later fill them into the loading rings (size differing from 00 to 5). The operator, then makes use of vacuum in order to bifurcate the capsules.
Application:
- Filling Capsules with powder, pellets & granules
- Pharmaceutical, Nutritional, Biotech, Health Supplement, Food Product & Cosmetics
- Hard Gelatine, HPMC & Veg Capsules in 00, 0, 1, 2, 3, 4 & 5 sizes
- Single Loader, Double Loader, Mini Model
Zero Hold Up Filter Press
Salient Features:
- Manufactured in SS - 304 / SS - 316 / SS - 316L M.O.C.
- MS / SS jacket can be provided for hot filtration.
- Gives crystal clear filtration by filtering particles up to 1 micron size.
- Scavenger arrangement to remove all the liquid.
- Cake can be dried either by compressed air or by inert gas, steam.
- Filtration rates from 600 LPH to 30000 LPH possible depending on the models.
- Centrifugal / Gear / Roto / Lobe Pumps can be offered.
- Sample collecting device & safety valve provided.
- Complete filtration of the batch without any holdup due to reverse flow of liquid, hence large saving in time & cost.
- Back wash facility can be provided for continuous operations.
- The cake, filter aid & solids remain totally enclosed, allowing filtration of toxic, hazardous & explosive liquids.
- No contamination of internal surface of shell.
- The top dome structure ensures fast & easy removal of cartridge assembly & cleaning of cake.
