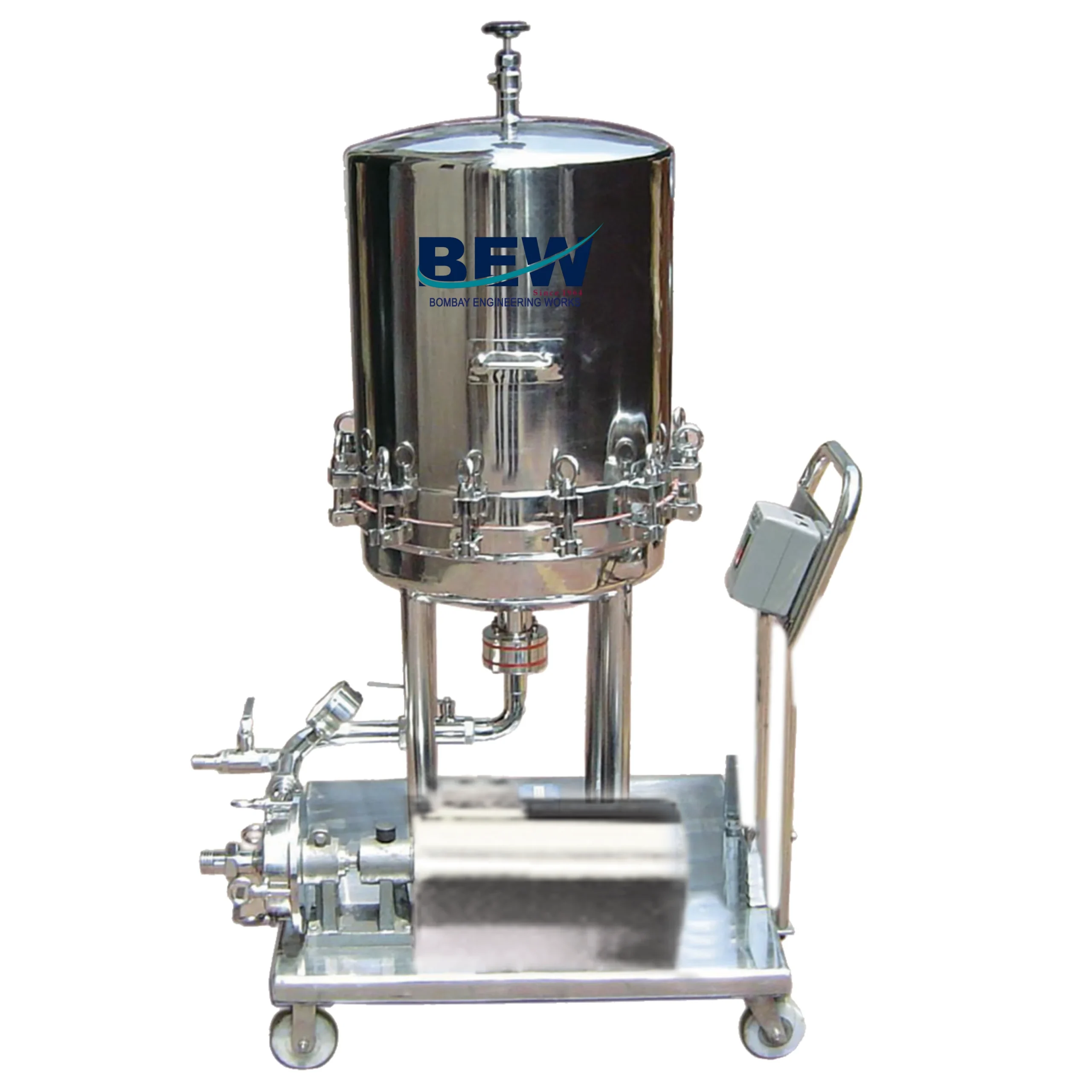

Filter Press
- Manufactured in SS-304, SS-316, or SS-316L M.O.C.
- MS or SS jacket available for hot filtration.
- Delivers crystal-clear filtration by removing particles up to 1 micron in size.
- Scavenger arrangement provided to remove all remaining liquid.
- Cake can be dried using compressed air, inert gas, or steam.
- Filtration rates range from 600 LPH to 30,000 LPH, depending on the model.
- Centrifugal, gear, roto, or lobe pumps can be offered.
- Equipped with a sample collecting device and safety valve.
- Ensures complete batch filtration with no holdup, thanks to reverse liquid flow—resulting in significant time and cost savings.
- Optional backwash facility available for continuous operation.
- Fully enclosed system allows safe filtration of toxic, hazardous, or explosive liquids.
- No contamination of the internal surface of the shell.
- Top dome design ensures quick and easy removal of the cartridge assembly and simple cake cleaning.
Related products
Agitated Nutsche Filter dryer
Salient Features:
- Hygiene-Centric Design: Engineered to meet stringent hygienic requirements for applications in the pharmaceutical, API, and food industries. Ideal for processes requiring high standards of cleanliness and safety.
- Hydraulic Operated Detachable Bottom: The detachable bottom is precisely operated by hydraulic cylinders, ensuring a secure fit with zero leakage for reliable and efficient operation.
- Enhanced Cake Squeezing: Optimized design enables significant squeezing of the filter cake, reducing residual moisture by up to 40% based on material characteristics. This minimizes drying energy requirements, making the process more energy-efficient.
- Closed and Contamination-Free Operation: Fully enclosed system ensures a clean and hygienic process, ideal for handling hazardous or toxic materials. The setup supports safe solvent recovery and minimizes human intervention for safer operations.
- Automated Discharge System: Facilitates easy, automated discharge of solids or cake without manual effort. A robust scraper blade effectively removes any material adhering to the vessel's internal surfaces.
- Efficient Drying Mechanism: Equipped with a hollow agitator shaft and blade for uniform and thorough drying of the filter cake.
- Low Maintenance Design: The unit is built with minimal maintenance requirements, ensuring long-term reliability and reduced downtime.
- Advanced Cleaning System: Includes specially designed tank-cleaning nozzles for comprehensive cleaning of the filter body, ensuring no residue remains after operation.
- Versatile Applications: Capable of handling a wide range of materials with precision and efficiency, meeting the needs of industries requiring high-quality filtration and drying.

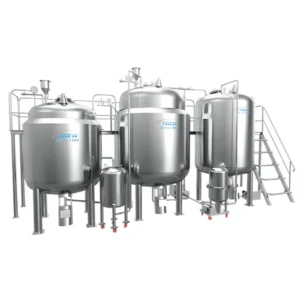

Automatic Liquid Oral Manufacturing Plant
Salient Features:
- cGMP model with contact parts in SS316.
- Fully automatic process untouched by human hands.
- Triple jacketed vessels suitable for heating and cooling.
- All fittings and valves are sanitary design.
- Options for top and bottom agitator assembly.
- 2 & 4 stage inline homogenizer provided.
- Sugar transfer system through vacuum.
- PLC based control panel, 21 CFR compliant.
- Electropolished pipeline.
- Ultrasonic level controller.
- Option for load cell.
- Option for automatic valves and utilities.

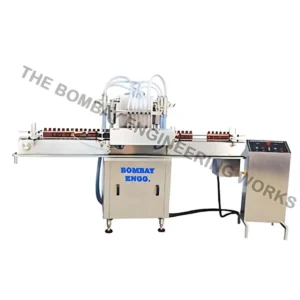

Bottles Liquid Filling Machine
we manufactures a range of standard liquid filling machines to suit a wide variety of liquids, bottle sizes and production outputs. For businesses ranging from SME’s through to large multinationals, our machines can be used for a wide spectrum of applications.
Our liquid filling machines range from simple single-head manually operated filling machines, through to fully automated multi-head filling systems using either vacuum level filling or volumetric piston filling technologies. If you cannot find a suitable machine in our standard range, please contact us to discuss your individual requirements – our engineering team is on hand to discuss modifications or even bespoke machine design solutions.
Client satisfaction is our prime motive; keeping this in mind, we always deliver quality products at a very reasonable price. We specialize in offering our customers a top-of-the-line gamut of Bottles liquid filling machine. These machines have an output of 4-head: 60-80 bottles/minute, 6-head: 120 bottles/minute & 8-head: 160 bottles/minute based on nature of liquids, bottle height, bottle diameter, bottleneck size, and full volume.
Whatsapp Enquiry

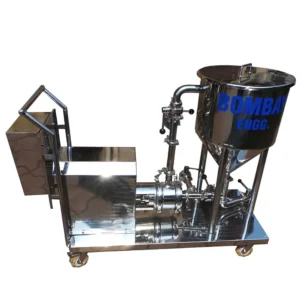

Inline Homogenisers
Overview: Homogenizing Process & Inline Homogenizers
What is Homogenizing?
Homogenizing blends substances to create a uniform and consistent mixture. A homogenizer breaks down solid particles into fine sizes, ensuring smooth and stable emulsions.
Types of Homogenizers
✔ Bottom Entry Homogenizer – Ideal for high-viscosity materials.
✔ Top Entry Homogenizer – Suitable for batch processing.
✔ Inline Homogenizer – Ensures continuous, high-consistency mixing.
How It Works
1️⃣ The product enters the homogenizing zone at low speed and high pressure.
2️⃣ Extreme acceleration and deceleration create cavitation and micronization.
3️⃣ Turbulence, vibrations, and shear forces ensure uniform mixing and globule explosion.
4️⃣ Toothed rotor-stator heads process the product up to 18 times in one pass.
Key Applications
🔹 Blending & Emulsifying – Ensures smooth, uniform mixtures.
🔹 Micronization – Breaks down particles for superior texture.
🔹 Continuous Production – Maintains consistency in large-scale processing.
Industries Using Inline Homogenizers
🏥 Pharmaceuticals – Creams, gels, suspensions
🎨 Paints & Coatings – Pigment dispersion
🥛 Dairy & Food – Milk, sauces, emulsions
📜 Paper Coating – Starch preparation
💄 Cosmetics – Lotions, serums
Whatsapp Enquiry
INTANK HOMOGENISER
INTANK HOMOGENISER is fitted on the vessel on a top dish or SS stand in case of open-top vessels. It is also available as a portable unit mounted on a stand or even as a wall hook type hanging unit as per clients requirements. It consists of a Rotor & Stator system mounted on a shaft driven by a Motor of suitable Hp at 1440 rpm. (Higher rpm available if required). We also provide four tie rods for support.
The homogenizer is often necessary to mix one or more substances within a liquid. This device allows micronizing and scattering the particles suspended in the fluid to become highly stable, no matter the followings treatments and stockings the products may undergo. The homogenizer delivers unparalleled consistency and control of high shear process applications such as Immiscible Phase Emulsifying, Homogenizing, Wet Grinding, Texturing, Deagglomeration, and Fine Dispersing.
The product arrives at the homogenizing at a low speed and high pressure (caused by the little gape between the passing head and collision head). During the passage, the product is subjected to numerous forces that drive the particles micronization: a violent acceleration followed by an immediate deceleration that produces cavitation and then the globules explosion. Strong turbulence is united to high-frequency vibrations. Collision cutting strengths derived from the laminar passage between the homogenizing valve surfaces and the following impact with the collision ring.
Whatsapp Enquiry
Pesticides Liquid Filling Machine
Salient Features:
- Automatic Liquid Filling Machine(4 Head)
- Machine speed: 40-50 bottle/min depends on bottle size
- Suitable for use in Cosmetics, Pharmaceuticals, Pesticides, Edible Oil, Lubricants etc.
- Available in GMP model Also
- Built-in Digital Product counter
- Imported Motors and Gears set
- Accuracy : ± 1 % At one Stroke
- SS-304 elegantly Matt finished machine
- Pneumatic stopping arrangements
- Proximity Sensor for Bottle sensing
- Available with HMI Display arrangement with PLC controlled
- Imported PLC for Better Functionality of HMI
- No bottle, Machine Stop with indication
- Voltage : 1-Phase, 230V, 50 Hz
- Product size: Up to 1000 ml
- Machine size: 1500*1000*800 mm
ROTARY BOTTLE WASHING MACHINE
ROTARY BOTTLE WASHING MACHINE/Bottle washing machine/bottle cleaning machine is a compact and highly efficient machine with an elegant look. This multifunctional multi featured machine meets the GMP requirements of washing glass and plastic bottles. The machine operates on the rotary principle with the “GENEVA” mechanism and requires manual loading and unloading of bottles.
Bombay Engineering’s rotary bottle washing machine is a compact and highly efficient machine with an elegant look. This multifunctional multi featured machine meets the GMP requirements of washing for glass and plastic bottles. The machine operates on the rotary principle with “GENEVA” mechanism and requires manual loading and unloading of bottles.
The bottles are loaded on the subsequent indexing part of the rotating platform and are cleaned in series of operations. Specially designed bottle holders are provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup-shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves enable the regulation of wash timings; it also sprays water when the bottle is stopped means ensure the saving of water and sequence of various washing media to suit specific requirements.
