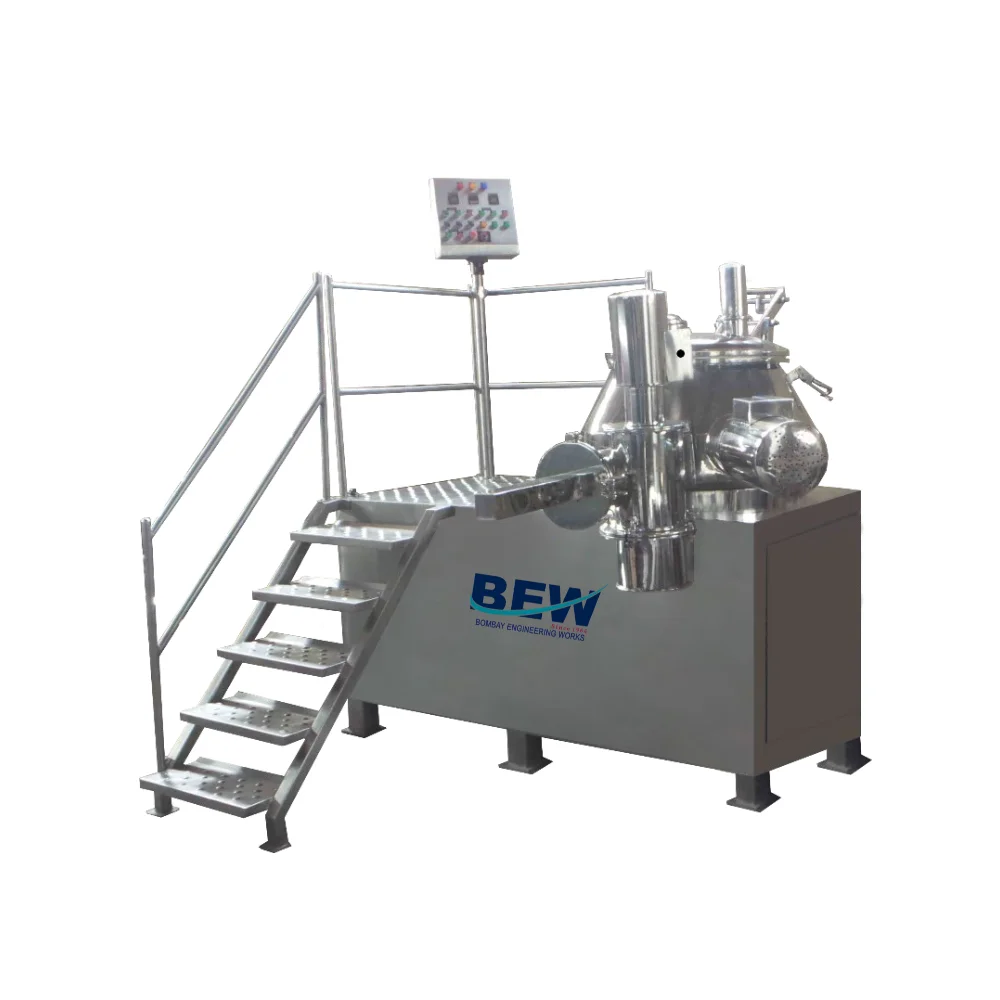

Rapid Mixer Granulator
Salient Features:
- cGMP model with contact parts in SS 316 & non-contact parts in SS 304.
- Homogeneous product distribution.
- Pneumatic top lid lifting system.
- Bottom impeller lifting system.
- 3/4 blade main impeller and 4 blade chopper impeller.
- CIP & binder addition system through pump.
- Variable speed drive for main and chopper motors.
- Online Comill at discharge.
- PLC in control panel, 21 CFR compliant.
