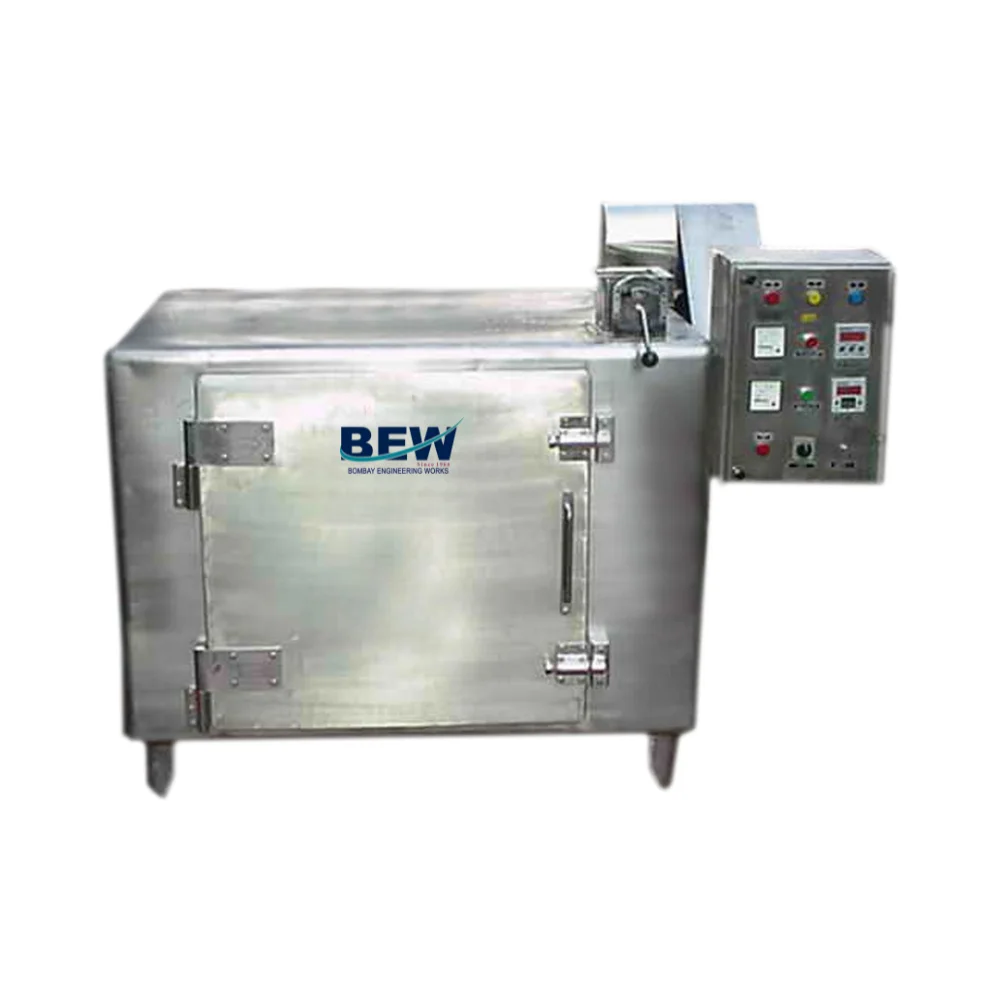

Tray Dryer
Salient Features:
- Single piece construction eliminates accumulation of dust on the dryer.
- Full welded internals with curved corners.
- Designed for uniform circulation of hot air in the drying chamber. Electrical/Steam/Thermic fluid/LPG/HSD burner heating available.
- Inlet is provided with 10 microns filter.
- Heating coils and fan motor have electrical interlocking.
- Digital temperature controller and digital timer are standard scope of supply.
