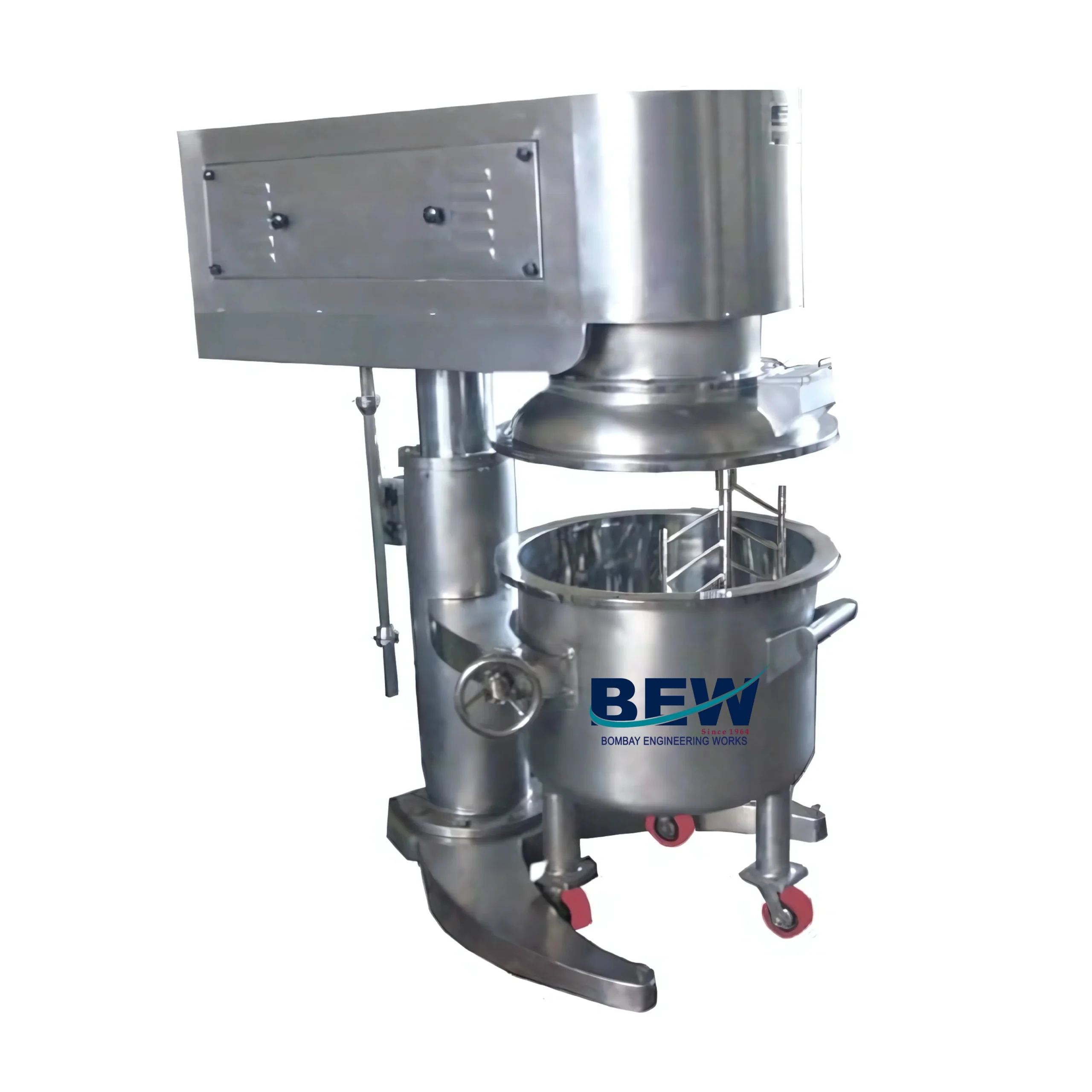

Planetary Mixer (VJHSE Type)
Salient Features:
- Suitable for mixing dry and wet powders & granules.
- Planetary motion agitators with scrapers.
- All contact parts are made out of S.S. 316 quality material.
- Compact design requires comparatively smaller floor space.
- Hydraulic lifting system for model 200 ltrs and above.
- Sturdy locking system for the bowl.
- Heavy construction & total vibration-free even during mixing. Stirrer with planetary motion.
- Flameproof model available as optional.
- PLC-based control panel available as optional.
Description
Technical Specifications
| Models | 15 ltrs | 50 ltrs | 100 ltrs | 200 ltrs | 350 ltrs | 500 ltrs | 650 ltrs |
|---|---|---|---|---|---|---|---|
| Motor Hp | 1.5 Hp | 2 Hp | 3 Hp | 5 Hp | 7.5 Hp | 10 Hp | 15 Hp |
| Rpm Beater | 54 & 108 | 54 & 108 | 54 & 108 | 54 & 108 | 54 & 108 | 54 & 108 | 54 & 108 |
| Rpm Planetary | 36 & 54 | 36 & 54 | 36 & 54 | 36 & 54 | 36 & 54 | 36 & 54 | 36 & 54 |
