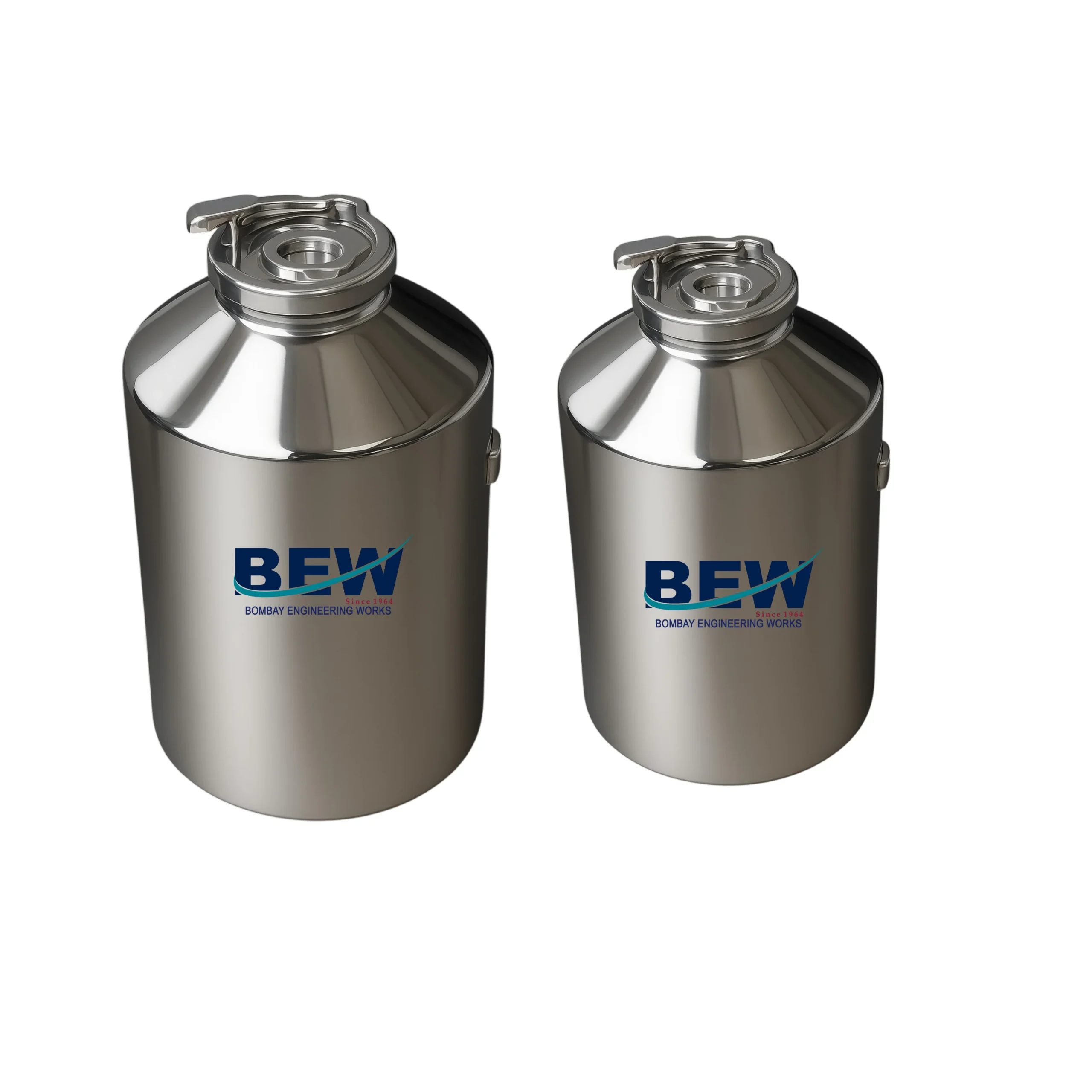

Filling Vessel
Capacity : 5 ltrs to 200 ltrs in SS 316 L
Related products
Automatic Liquid Filling Line
STANDARD LIQUID FILLING LINE CONSISTS OF:
Rotary Bottle Washing Machine: Rotary Bottle washing machine comes in 64 & 96 bottles per minute.
Turntable: Available in 24", 30", 36" & 48" dia.
Liquid Filling Machine: Available in 2 head, 4 head, 6 head, 8 head, 10 head & 12 head. Filling Range from 5 ml to 1000 ml with help of change parts. Liquid filling machine is available in Volumetric type, Servo Filling type, Flowmatic type, Piston type etc., as per application & requirement.
Capping Machine: Available in single head, four head, six head, 8 head & 10 head. Suitable for both Screw Capping & Ropp Capping with help of change parts. Attachment for inner plug pressing also provided if required.
Inspection Table: Available in 2, 4, 6, and 8 operators as per filling line model.
Labeling Machine: Available in Sticker Labelling (Round and Double Sided or Combo) and Wet Glue Labelling.
Batch Coding: Inkjet online batch coding for online batch coding.
Packing Conveyor Belt: Available in 6 ft, 8 ft, 10 ft, 12 ft up to 24 ft, as per requirements, with endless food-grade belt and variable speed drive.
Bottle Capping Machine
We are dedicate indulged in providing a supreme quality assortment of Bottle Capping Machine. Accurately designing the complete range of the offered machines and developing it using quality tested components and superior techniques following global quality norms. Our customers widely demand our provided machines for their high performance and reliability.
Whatsapp Enquiry
MINI COTA (SPRAYING SYSTEM)
The Mini Cota (Semi-Automatic Spray Coating Machine) is designed to replace conventional manual coating of tablets and granules. It provides a rapid and uniform coating system with multiple functional features and advantages.
This compact machine is equipped with a specially designed stainless steel (S.S.) spray gun for atomized spraying. Compared to fully automatic systems, which are 15-20 times more expensive, the Mini Cota offers a more economical and user-friendly alternative.
Key Features:
Pressure vessel with an optional S.S. jacket (for sugar coating) and thermostatically controlled heaters Safety valve for pressure control Oscillating-type pneumatic stirrer for uniform mixing Spraying nozzles for precise coating application Compact control panel with a double-acting pneumatic cylinder for intermittent spraying of liquid and air Adjustable spray cycle timing for controlled coating application Filter cum moisture separator to ensure a clean coating process Operation & Mechanism: The Bombay Engineering Mini Cota consists of a pressure vessel, which can be optionally provided with an S.S. jacket for sugar coating, controlled heaters, a safety valve, an oscillating-type pneumatic stirrer, and spraying nozzles. It also includes a compact control panel with a pneumatic cylinder, ensuring precise intermittent spraying controlled by a timer. The coating solution is filled into the pressure vessel and pressurized using oil/moisture-free compressed air at 3 to 4 kg/cm², resulting in a uniform, atomized conical spray. The spray guns, mounted on a heavy-duty S.S. stand, can be adjusted as required. The duration of air and liquid spray is controlled by a digital timer and pneumatic cylinder via a solenoid valve. Available Capacities: 25 liters to 100 liters Whatsapp Enquiry
Oil Filling Machine
Salient Features:
- ± 1% Filling accuracy on a single dose.
- No bottle, No filling system.
- Rigid vibration free construction for trouble-free performance.
- S.S. Elegantly matt finished body.
- Elegant and comfortable control panel for total control of the operation.
- Minimum changes over time, from one size to another container or fill size.
- Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction wear surface, smooth and noiseless conveying.
- Error code display on A.C. frequency drive on the control panel.
- Drain tray around machine platform.
- Drip tray under the conveyor.
- Pneumatic bottle stopping arrangement.
Online Visual Bottle Inspection Machine
Online Visual Bottle Inspection Machine is a three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. The inspection table has a stainless steel structure with a moving S.S. slat chain. Design made out of S. S. square pipe & supported on adjustable bolts.
Online Visual Bottle Inspection Machine
The Bombay Engineering’s Inspection table consists of two (Single Side seating arrangements) or three (Double Side seating arrangements) tracks conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color.
Operation:
The central conveyor belt brings the bottle from the capping/washing machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. In turn, the operators pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any partials in the Liquid filled, sealed & breakage of the bottle. After inspection, the bottles are placed in the central track, which is transfer for labelling.
Whatsapp Enquiry
Paste Kettle
Salient Features:
- Tilting type design available in manual / pneumatic type.
- Hemispherical bottom for greater heat area.
- cGMP model in SS 316 contact parts.
- Electrically or steam heated jackets.
- Agitator with variable speed drive provided Auto temp control
Volumetric Liquid Bottle Filling Machine
Salient Features:
- Total GMP Model.
- Total contact parts are of S.S.-316, and other surface parts are of S.S.304.
- Manufactured with the latest technology.
- They synchronized it with two nos, of A.C. drive for central motor & conveyor belt.
- Automatic speed control system.
- No Bottle – No Filling systems.
- Special Type Diving Nozzle helps prevent foaming problems.
- Nozzle Lock system solves dropping problems.
- Bottle counter system based on an automatic sensor.
- Bottle stopper and holder pneumatic based.
- Trouble-free performance acquired due to rigid vibration free constructions.
- Elegantly matt finished body.
- Minimum change over time, from one size to another fill size
- Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction wear surface, smooth and
- noiseless conveying.
Zero Hold Up Filter Press
Salient Features:
- Manufactured in SS - 304 / SS - 316 / SS - 316L M.O.C.
- MS / SS jacket can be provided for hot filtration.
- Gives crystal clear filtration by filtering particles up to 1 micron size.
- Scavenger arrangement to remove all the liquid.
- Cake can be dried either by compressed air or by inert gas, steam.
- Filtration rates from 600 LPH to 30000 LPH possible depending on the models.

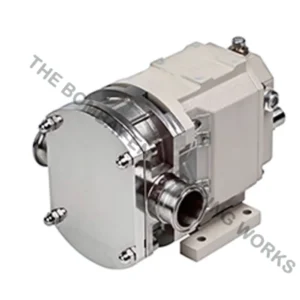

- Centrifugal / Gear / Roto / Lobe Pumps can be offered.
- Sample collecting device & safety valve provided.
- Complete filtration of the batch without any holdup due to reverse flow of liquid, hence large saving in time & cost.
- Back wash facility can be provided for continuous operations.
- The cake, filter aid & solids remain totally enclosed, allowing filtration of toxic, hazardous & explosive liquids.
- No contamination of internal surface of shell.
- The top dome structure ensures fast & easy removal of cartridge assembly & cleaning of cake.
