Container filling machine

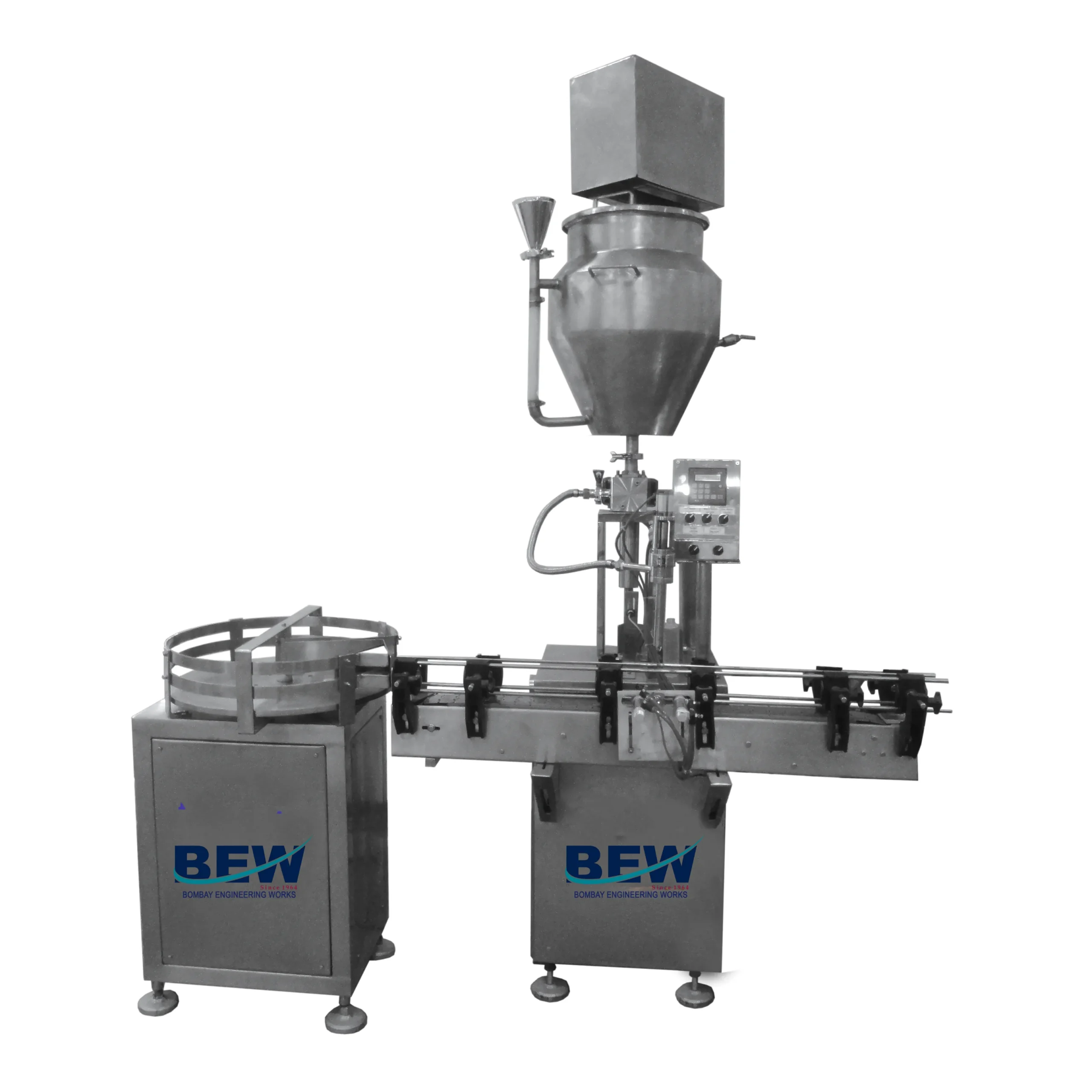

Overview: Container Filling Machines
Our Container Filling Machines are designed for efficiently filling cream, paste, ointment, wax polish, grease, jam, sauce, and other viscous products into plastic or tin containers, jars, and bottles.
✔ Versatile Compatibility:
✔ Automated Transfer: Containers are fixed to a turntable and transferred via a conveyor to the filling unit.
✔ No-Bottle – No-Fill System: Prevents wastage by stopping the filling process if containers are not in place.
✔ Stainless Steel Jacketed Hopper:
Equipped with a product heater and mixing stirrer for uniform consistency during high-viscosity filling. ✔ Smooth Workflow:
Filled containers are transported via a conveyor system for capping and labeling operations.
Operational Process:
1️⃣ Loading & Transfer:
Flat tins or bottles are loaded onto the turntable and transferred onto a conveyor belt.
2️⃣ Filling Station:
Precise dosing system ensures accurate filling.
No-Container – No-Fill Device prevents wastage if a container is missing.
3️⃣ Optional Features:
S.S. Jacketed Hopper with 2 KW heaters & stirrer for seamless filling of high-viscosity products.
4️⃣ Post-Filling Process:
Filled containers are transported via the conveyor for further processing (capping & labeling).
Our high-performance filling machines ensure efficiency, accuracy, and reliability, making them ideal for pharmaceutical, cosmetic, food, and industrial applications.
Related products
Automatic Empty Capsule Loader
Automatic Empty Capsule Loader is used for the automatic filling of pharmaceutical ingredients in the empty capsules.
The automatic capsule loader machine offered by us works 2-3 times faster than the manual capsule loader. We manufacture our capsule filling machine in total compliance with international quality standards.
Automatic Empty Capsule Loader loads capsules automatically onto the loading tray of Capsule Filling Machine. The machine is compact occupies minimum space. It gives higher production with a much better standard of accuracy.
Bombay Engineering is one of the leading manufactures and exporter of the best quality Empty Capsule Tray Loader Machine application for small to medium-sized batch productions. R and D Laboratories is amongst the best quality Capsule loader machine in INDIA. The capsule loading machine’s function is to fill empty capsules in the Hand-operated manual capsule filling machine or handy manual capsule filling machine. A capsule loader machine is mostly used to increase productivity in the small or medium-scale manufacturing unit; it saves time and labor required to fill 300 empty capsules in a machine’s loading tray. Automatic Capsule loader fills 300 empty capsules in loading plate of manual capsule filling machine very fast and efficiently saving production time required in hand filling of empty hard gelatin capsules in benchtop or manual capsule filling machine.
Operation: Fill Hopper With Empty Capsules. Place Hand-Filler Loading Tray With Guide On The Sliding Base Plate & Switch On The Machine. The Capsules Automatically Get Nested In The Tray, Cap Up, and Body Down. Time Taken For Loading 300 Capsules In 300-Hole Tray Is 28 Seconds.
Interchangeability: Can supply interchangeable Parts For All Capsule Sizes: 00, 0, 1, 2, 3, 4 & 5 Capsules.
Bombay Engineering offers one year warranty for an automatic capsule loader for any manufacturing defects. Bombay Engineering is a reliable source and is recognized as the best quality capsule loader machine supplier and wholesaler. Capsule loader machine price or cost is very reasonable for suppliers and wholesalers further capsule loader suppliers can avail the best offer for bulk quantity order of capsule loader.
Unique Features:
- Low Investment. High Output.
- Very Simple To Operate.
- Easily Removable Parts.
- Sturdy Fabrication – Assured Durability.
- Designed To Fill All Standard-Size Capsules.
- Also Available Gmp Model, Completely Covered With S.S.304
Technical Specification
- Output: 120 Fills 300-hole plate per hour.
- Drive: 0.25 HP 3-Phase 50 Cycles
- Dimensions: 585mm (L) X 525mm (W) X l0l5mm (H)
- Weight: 120 Kg
BOMBAY COATER
SALIENT FEATURES:
- Automated process
- Conforms to cGMP
- Flexible batch operations
- Product protective handling to prevent clipping of tablets
- Complete separation of production and technical area
- Extremely user-friendly software and operation through PLC
- Excellent mixing and tumbling by special design of baffles
- Made entirely of S.S. 316
- Advanced CIP system
- Treatment of exhaust for pollution-free operation
AVAILABLE CAPACITIES: 12", 15", 18", 24", 36", 48", 60“, 66", 72" & 96" Diameter.
Bottle Labeling Machine
Salient Features:
- S.S. GMP Model.
- No Bottles – No labeling system.
- Machine Advantage: No change parts are required to change any bottle & label sizes.
- In your particular case, offer a machine with a Touch code printer to print Mfg. Expiry, Batch No. etc.
- Labeling Capacity: 60 to 80 Bottles/Minute (Depending upon Labels & Bottles).
- Stepper Motor: 60 Kg/cm2
- Programmable MMI Unit: Standard (Our programming).
- A.C. Frequency drive for conveyor & pressing device.
- Total synchronized with stepper motor & A.C. motor with single speed variator port.
- Applicator height is adjustable as per customer requirement to change labeling position on the bottle.
- It has an inbuilt speed indicator & counter.
- No change parts are required to be changing any container & label sizes, hence only one-time investment.
Manual Capsule Filling Machine
Description:
Manual Capsule Filling Machine is a widely used form of capsule filling. The machine is designed and manufactured with utmost care to handle all capsule sizes ranging from "00" to "5" and to provide trouble-free service year after year. It is easy to operate, delivers production with minimum rejection, and ensures no weight variation. It is capable of filling powders and pellets in all sizes of hard gelatin capsules.
Though all operations are manual, the machine is built with precision-machined components and assembled by highly skilled personnel. The Manual Capsule Filling Machine is widely used in research laboratories, academic institutions, herbal/ayurvedic preparation facilities, and medium to small-scale manufacturing industries.
There is also an option of purchasing an Automatic Capsule Loading Machine to speed up production output with the filling machine, as the maximum time in the filling process is taken by loading capsules onto the loading trays of the capsule filler.
Features:
- Low investment.
- High benefit ratio.
- Simple to operate and can be handled by unskilled labor.
- All loading plates are made of SS 304 quality.
- Easily dismantled and reassembled even by unskilled labor.
Models 100 / 200 / 300 Holes GMP & STD:
GMP: The machine is fully made out of stainless steel 304 quality except hardened and lubricant parts. STD: All parts that come into contact with filling powder are made out of stainless steel 304 quality, and the non-contact parts are made out of mild steel duly hard chrome plated.
Output:
- 8,000 capsules per hour from 300 holes machine.
- 4,500 capsules per hour from 200 holes machine.
- 2,000 capsules per hour from 100 holes machine.
Interchangeability:
The machine is manufactured to suit the following capsule size combinations: 00 / 0 / 1 / 2 or 3 / 4 or 5.
Whatsapp Enquiry
MINI COTA (SPRAYING SYSTEM)
The Mini Cota (Semi-Automatic Spray Coating Machine) is designed to replace conventional manual coating of tablets and granules. It provides a rapid and uniform coating system with multiple functional features and advantages.
This compact machine is equipped with a specially designed stainless steel (S.S.) spray gun for atomized spraying. Compared to fully automatic systems, which are 15-20 times more expensive, the Mini Cota offers a more economical and user-friendly alternative.
Key Features:
Pressure vessel with an optional S.S. jacket (for sugar coating) and thermostatically controlled heaters Safety valve for pressure control Oscillating-type pneumatic stirrer for uniform mixing Spraying nozzles for precise coating application Compact control panel with a double-acting pneumatic cylinder for intermittent spraying of liquid and air Adjustable spray cycle timing for controlled coating application Filter cum moisture separator to ensure a clean coating process Operation & Mechanism: The Bombay Engineering Mini Cota consists of a pressure vessel, which can be optionally provided with an S.S. jacket for sugar coating, controlled heaters, a safety valve, an oscillating-type pneumatic stirrer, and spraying nozzles. It also includes a compact control panel with a pneumatic cylinder, ensuring precise intermittent spraying controlled by a timer. The coating solution is filled into the pressure vessel and pressurized using oil/moisture-free compressed air at 3 to 4 kg/cm², resulting in a uniform, atomized conical spray. The spray guns, mounted on a heavy-duty S.S. stand, can be adjusted as required. The duration of air and liquid spray is controlled by a digital timer and pneumatic cylinder via a solenoid valve. Available Capacities: 25 liters to 100 liters Whatsapp Enquiry
Oil Filling Machine
Salient Features:
- ± 1% Filling accuracy on a single dose.
- No bottle, No filling system.
- Rigid vibration free construction for trouble-free performance.
- S.S. Elegantly matt finished body.
- Elegant and comfortable control panel for total control of the operation.
- Minimum changes over time, from one size to another container or fill size.
- Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction wear surface, smooth and noiseless conveying.
- Error code display on A.C. frequency drive on the control panel.
- Drain tray around machine platform.
- Drip tray under the conveyor.
- Pneumatic bottle stopping arrangement.
Paste Kettle
Salient Features:
- Tilting type design available in manual / pneumatic type.
- Hemispherical bottom for greater heat area.
- cGMP model in SS 316 contact parts.
- Electrically or steam heated jackets.
- Agitator with variable speed drive provided Auto temp control
Semi Automatic Capsule Filling Machine
We are offering a wide range of Semi Automatic Capsule Filling Machine. The Machine gives 25,000 to 30,000 capsules per hour and suitable for filling capsules of all sizes with powder, pellets & granules. It is comparable to the best because of its outstanding mechanical & functional features. This innovative design & precision manufacturing meets the requirements of cGMP. The Machine is an ideal choice in the SemiAutomatic Capsule Filling Machine available in the market. we provide different types of capsule filling machine
Bombay Engineering’s Semi-Automatic Capsule Filling Machine is designed for precision manufacturing requirements of modern pharmaceutical procedures. Capsule Filling Machine is suitable to fill size 00 to 5 capsules with powder, granules, or pellets. We have three different models that provide production output ranging from 25000 capsules per hour to 45000 capsules per hour. The machine provides a high degree of automation with higher levels of filling weight accuracy. The machine is made as per GMP standards having all Stainless-Steel covering. A machine has wide usage in R&D laboratories, Research Institutions, Herbal & Nutraceutical preparations, Unani & Ayurvedic medicines, Pilot batch productions, etc.
We can provide line equipment naming Capsule Conveying System, Capsule Polishing Machine, Dust Extractor, Damage Capsule Sorter, and Empty Capsule Ejector to make complete Semi Automatic Capsule Filling Line.
The Semi Auto. capsule filling machine allows for higher degree of automation when compared to manual capsule filling machine, thus ensuring higher level of filling weight accuracy. This capsule filling machine is deemed apt for the operation of capsule filling of varying sizes with powders, granules or pellets. With the GMP standards manufacturing methods employed for semi automatic capsule filling machine, it comes with an all Stainless-Steel covering. The machine is capable of yielding high outputs, i.e. 25000 to 47000 capsules/hour that depends on the size of capsule and operator’s skill-set. It performs the operation of on line polishing & sorting. Polishing of the tablets do not require operators and there is no need for a separate storage for filled capsule. The semi-automatic capsule filling machine has a four speed auger that allows it to operate and fill different types of powder & pellets. Filling table of the machine has variable speed that aids in achieving high dosage accuracy. Semi automatic capsule filler incorporates automatic capsule loading system to ensure faster, safer, closure and ejection of filled capsules. It also has an automatic drug hopper in-feed mechanism to eliminate any variation in weight and thus ensures in high productivity.
The semi-automatic capsule line is equipped with automatic Capsule conveying system that transports the completely filled capsules to capsule polishing machine from semi automatic capsule filling machine or where they need to convey. The process is completely automatic without human hands interactions with the help of a pump that sucks and move the filled capsules. automatic polishing machine for cleaning the capsules. It uses a rotating brush to carry out the operation. The polishing chamber comprises of a rotating spiral brush that removes the powder particles from the surface of the capsules after being fed. This chamber is also connected to the vacuum cleaner to suck out the de-dusted powder in order to clean the chamber. The semi auto capsule filling line also comprise of an empty capsule ejector. It checks whether the capsules are filled or not and ejects those capsules that are empty due to some machine error. Capsule ejection takes place due to the air force applied on the capsules. Damage capsule sorter removes the diametrically distorted capsules from the lot and only allows the perfect sized capsules to pass through. It is a part of semi-automatic capsule filling line machine and ensures only well proportionate & sized capsules.
The entire arrangement of the semi-automatic capsule filler is quite uncomplicated. At first, the capsules are transferred to the hopper whose size varies from 00 to 5. In a separate corkscrew driven hopper, the powders are again transferred that ensures a constant fill in every single capsule. Vacuum sucker is also utilized in this process for the purpose of sorting the capsules individually and later fill them into the loading rings (size differing from 00 to 5). The operator, then makes use of vacuum in order to bifurcate the capsules.
Application:
- Filling Capsules with powder, pellets & granules
- Pharmaceutical, Nutritional, Biotech, Health Supplement, Food Product & Cosmetics
- Hard Gelatine, HPMC & Veg Capsules in 00, 0, 1, 2, 3, 4 & 5 sizes
- Single Loader, Double Loader, Mini Model
