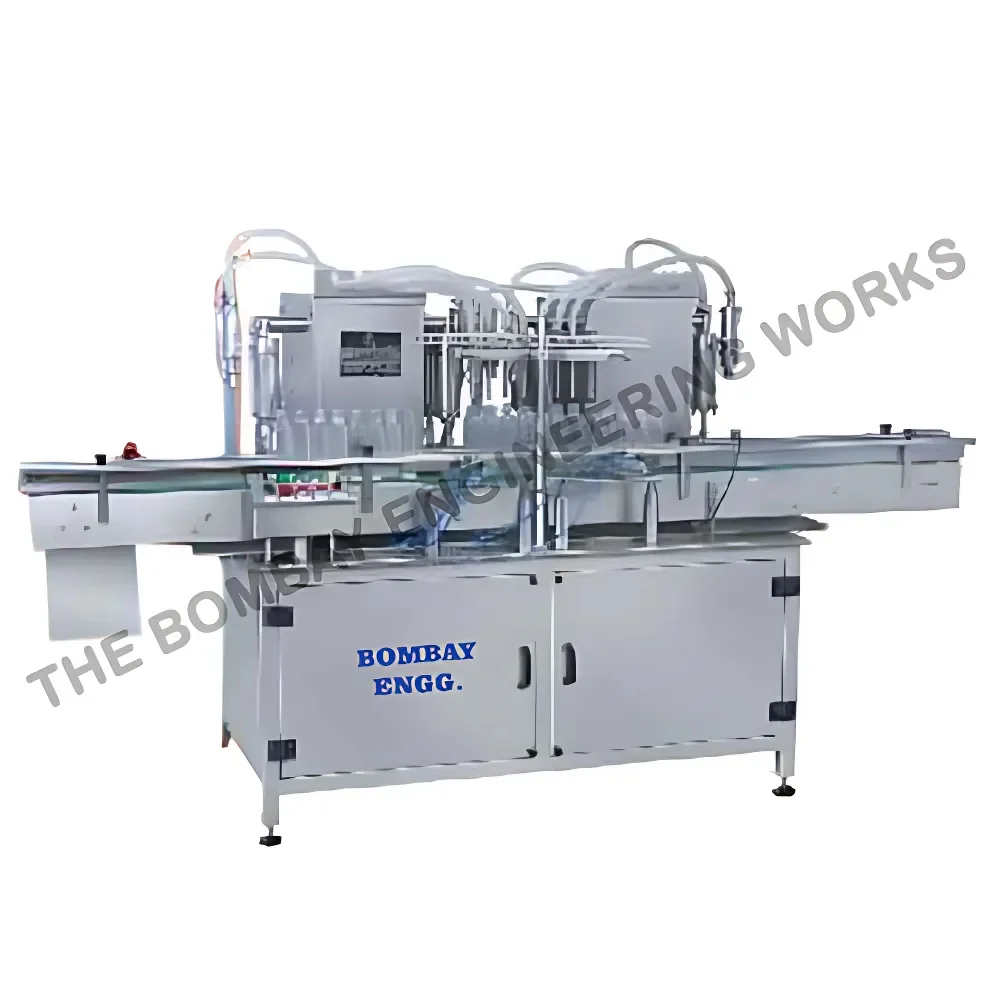

Bottles Liquid Filling Machine
we manufactures a range of standard liquid filling machines to suit a wide variety of liquids, bottle sizes and production outputs. For businesses ranging from SME’s through to large multinationals, our machines can be used for a wide spectrum of applications.
Our liquid filling machines range from simple single-head manually operated filling machines, through to fully automated multi-head filling systems using either vacuum level filling or volumetric piston filling technologies. If you cannot find a suitable machine in our standard range, please contact us to discuss your individual requirements – our engineering team is on hand to discuss modifications or even bespoke machine design solutions.
Client satisfaction is our prime motive; keeping this in mind, we always deliver quality products at a very reasonable price. We specialize in offering our customers a top-of-the-line gamut of Bottles liquid filling machine. These machines have an output of 4-head: 60-80 bottles/minute, 6-head: 120 bottles/minute & 8-head: 160 bottles/minute based on nature of liquids, bottle height, bottle diameter, bottleneck size, and full volume.
