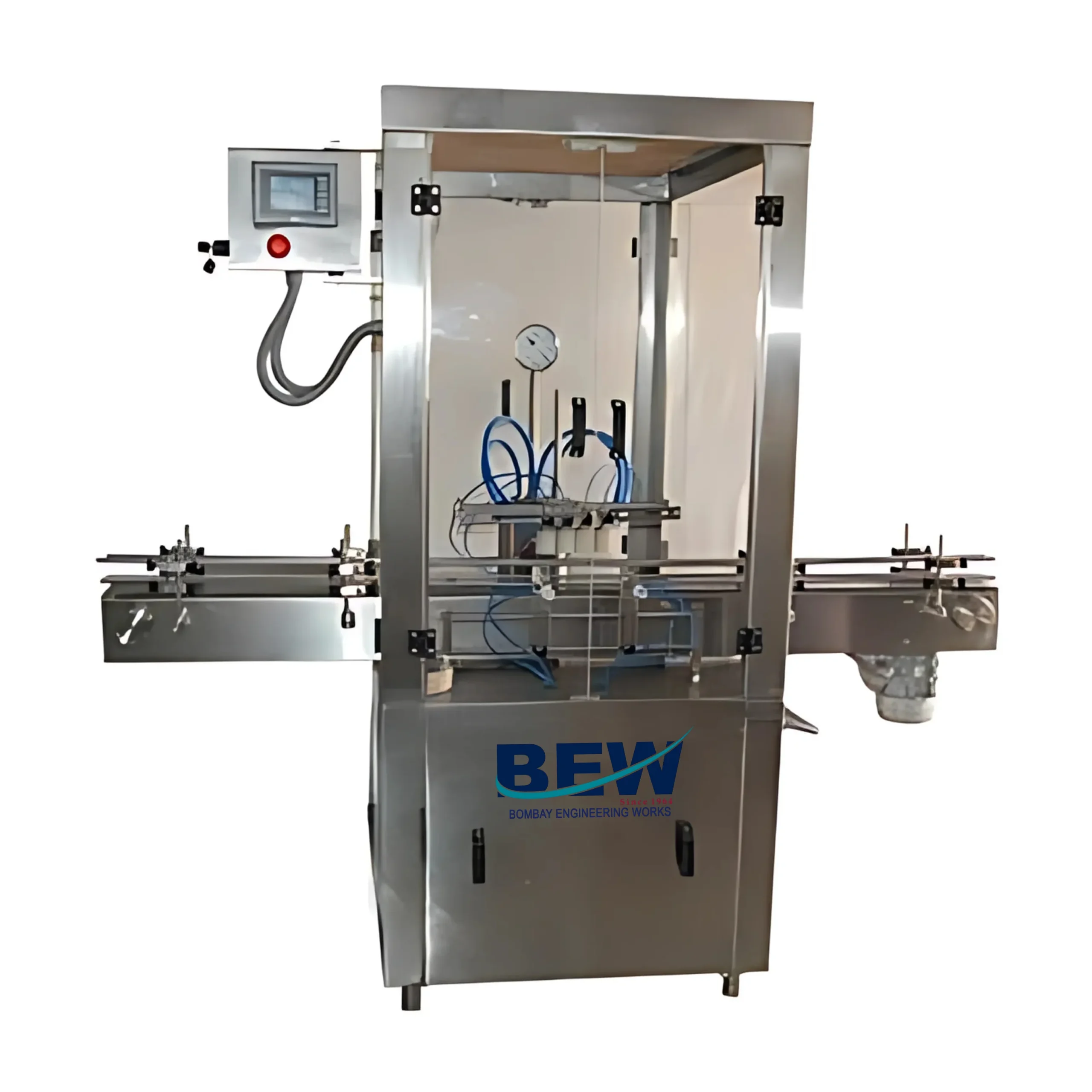

Bottle / Liquid Filling Machine
Related products
Coating Pan
Salient Features:
- SS 316 pan and other contact parts.
- Baffles inside the pan for proper tumbling of the tablets.
- Hot air blower to ensure faster drying of the tablets Gearbox and motor fitted in SS enclosure behind the machine
- Angle of the pan can be changed to suit individual requirements.
- Flameproof motor & electricals available as option.
- Interchangeable pans on the same machine for smaller models.
- Spraying system with solution vessel, pneumatic stirrer, peristaltic pump, and spray nozzle with control panel.
Inline Homogenisers
Overview: Homogenizing Process & Inline Homogenizers
What is Homogenizing?
Homogenizing blends substances to create a uniform and consistent mixture. A homogenizer breaks down solid particles into fine sizes, ensuring smooth and stable emulsions.
Types of Homogenizers
✔ Bottom Entry Homogenizer – Ideal for high-viscosity materials.
✔ Top Entry Homogenizer – Suitable for batch processing.
✔ Inline Homogenizer – Ensures continuous, high-consistency mixing.
How It Works
1️⃣ The product enters the homogenizing zone at low speed and high pressure.
2️⃣ Extreme acceleration and deceleration create cavitation and micronization.
3️⃣ Turbulence, vibrations, and shear forces ensure uniform mixing and globule explosion.
4️⃣ Toothed rotor-stator heads process the product up to 18 times in one pass.
Key Applications
🔹 Blending & Emulsifying – Ensures smooth, uniform mixtures.
🔹 Micronization – Breaks down particles for superior texture.
🔹 Continuous Production – Maintains consistency in large-scale processing.
Industries Using Inline Homogenizers
🏥 Pharmaceuticals – Creams, gels, suspensions
🎨 Paints & Coatings – Pigment dispersion
🥛 Dairy & Food – Milk, sauces, emulsions
📜 Paper Coating – Starch preparation
💄 Cosmetics – Lotions, serums
Whatsapp Enquiry
Online Visual Bottle Inspection Machine
Online Visual Bottle Inspection Machine is a three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. The inspection table has a stainless steel structure with a moving S.S. slat chain. Design made out of S. S. square pipe & supported on adjustable bolts.
Online Visual Bottle Inspection Machine
The Bombay Engineering’s Inspection table consists of two (Single Side seating arrangements) or three (Double Side seating arrangements) tracks conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color.
Operation:
The central conveyor belt brings the bottle from the capping/washing machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. In turn, the operators pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any partials in the Liquid filled, sealed & breakage of the bottle. After inspection, the bottles are placed in the central track, which is transfer for labelling.
Whatsapp Enquiry
Packing Conveyor Belt
Overview:
Packing Conveyor Belt
The Packing Conveyor Belt offers an efficient solution for handling materials and transporting products in various industries, particularly in the pharmaceutical sector. It aids in seamless movement and assists in assembly line packing operations.
Key Features:
✔ Durable Construction: Made from Nylon, P.U., Silicon, or Teflon materials, ensuring high tensile strength, longevity, and durability.
✔ Stainless Steel Tabletop: Equipped with a stainless steel tabletop, ensuring a sturdy and hygienic surface for product handling.
✔ Endless Sandwich Belt: Features a moving endless sandwich belt in the center, ensuring smooth product transfer.
✔ Adjustable Support Structure: The tabletop is fixed to a structure made of SS square pipes, supported on adjustable bolts for stability and customization.
✔ 12-Inch Working Space: Offers 12 inches of working space on both sides of the conveyor belt, providing room for final visual inspection and packing.
Whatsapp Enquiry
Pesticides Liquid Filling Machine
Salient Features:
- Automatic Liquid Filling Machine(4 Head)
- Machine speed: 40-50 bottle/min depends on bottle size
- Suitable for use in Cosmetics, Pharmaceuticals, Pesticides, Edible Oil, Lubricants etc.
- Available in GMP model Also
- Built-in Digital Product counter
- Imported Motors and Gears set
- Accuracy : ± 1 % At one Stroke
- SS-304 elegantly Matt finished machine
- Pneumatic stopping arrangements
- Proximity Sensor for Bottle sensing
- Available with HMI Display arrangement with PLC controlled
- Imported PLC for Better Functionality of HMI
- No bottle, Machine Stop with indication
- Voltage : 1-Phase, 230V, 50 Hz
- Product size: Up to 1000 ml
- Machine size: 1500*1000*800 mm
POLISHING PAN
We are leading coating pan manufacturer in mumbai.
Coating Pan machine is consists of an Ellipsoidal pan mounted on a suitable stand and driven by a motor through the right gearbox. The pan is made out of SS 316 and has welded baffles in it. This baffle helps in the tumbling of the tablets/material into the pan while rotating. The speed can be changed by a 3 step pulley or a variable speed drive provided in the control panel. It supplies a hot air blower and the coating pan with heater assembly and a flexible SS pipe, which goes into the pan to dry the tablets/material into the pan after coating. A Control panel helps provide a Starter or variable speed drive, Digital temp controller for controlling temperature.
A spraying system with the pan coating for film coating/sugar coating into the coating pan’s tablets/material. It consists of a suitable capacity pressurized vessel with spray guns mounted on a stand. The liquid into the container is pressurized and sprayed into the coating pan on the coated material. A peristaltic pump helps offer a transfer of fluid into the spray gun and then spread it into the pan.
We provide an exhaust blower as an option for exhausting fumes generated by the liquid spraying into the coating pan’s tablets/material.
A wet scrubber helps neutralize the exhaust fumes before entering the open atmosphere.
Whatsapp Enquiry
Rapid Mixer Granulator
Salient Features:
- cGMP model with contact parts in SS 316 & non-contact parts in SS 304.
- Homogeneous product distribution.
- Pneumatic top lid lifting system.
- Bottom impeller lifting system.
- 3/4 blade main impeller and 4 blade chopper impeller.
- CIP & binder addition system through pump.
- Variable speed drive for main and chopper motors.
- Online Comill at discharge.
- PLC in control panel, 21 CFR compliant.
ROTARY BOTTLE WASHING MACHINE
ROTARY BOTTLE WASHING MACHINE/Bottle washing machine/bottle cleaning machine is a compact and highly efficient machine with an elegant look. This multifunctional multi featured machine meets the GMP requirements of washing glass and plastic bottles. The machine operates on the rotary principle with the “GENEVA” mechanism and requires manual loading and unloading of bottles.
Bombay Engineering’s rotary bottle washing machine is a compact and highly efficient machine with an elegant look. This multifunctional multi featured machine meets the GMP requirements of washing for glass and plastic bottles. The machine operates on the rotary principle with “GENEVA” mechanism and requires manual loading and unloading of bottles.
The bottles are loaded on the subsequent indexing part of the rotating platform and are cleaned in series of operations. Specially designed bottle holders are provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup-shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves enable the regulation of wash timings; it also sprays water when the bottle is stopped means ensure the saving of water and sequence of various washing media to suit specific requirements.
