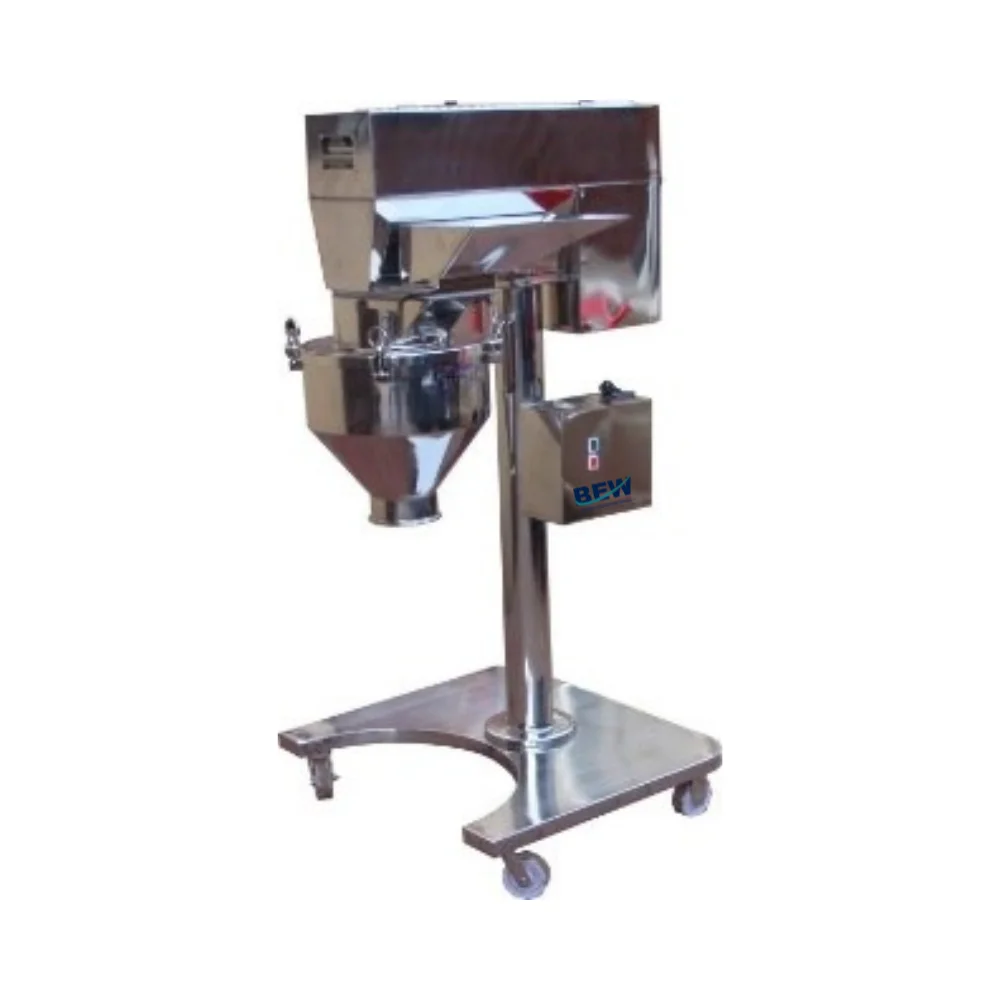

Multimill
Salient Features:
- GMP model with SS 316 contact parts.
- Direction of beaters can be changed by reversible switch.
- All contact parts can be easily and quickly dismantled and cleaned.
- Machine is designed for continuous operation.
- Cylindrical screen for higher output.
- Castor wheels provided for mobility.
- Flameproof electrical components can be provided at extra cost.
- Option for direct-driven motor with mechanical seal available.
Related products
Fluid Bed Bowl Tipper
Salient Features:
- Design is cGMP - Current Good Manufacturing Practices compliance.
- All contact parts AISI 316 & non-contact parts AISI 304.
- Capacity available 30 Kg to 600 Kg.
- Unloaded material with inline process using cone mill, granulator, and IBC Bin for dust-free operation.
- Fully automatic system with hydraulic lifting and tipping arrangement for quick and easy handling.
- Eliminates tedious and unhygienic manual handling of products.
- Tilting arrangement with a single point pivot ensures GMP compliance and ease of operation.
- 180-degree swiveling of vertical mast with vertical lift and tippling ensure motion in all three dimensions as required.
- Discharge cone fitted with butterfly valve at the bottom with silicon rubber seat.
- Hydraulic power pack can be mounted over the service floor, allowing hydraulic lines and electric cables to pass through the hollow pivot shaft above the working area slab.
MINI COTA (SPRAYING SYSTEM)
The Mini Cota (Semi-Automatic Spray Coating Machine) is designed to replace conventional manual coating of tablets and granules. It provides a rapid and uniform coating system with multiple functional features and advantages.
This compact machine is equipped with a specially designed stainless steel (S.S.) spray gun for atomized spraying. Compared to fully automatic systems, which are 15-20 times more expensive, the Mini Cota offers a more economical and user-friendly alternative.
Key Features:
Pressure vessel with an optional S.S. jacket (for sugar coating) and thermostatically controlled heaters Safety valve for pressure control Oscillating-type pneumatic stirrer for uniform mixing Spraying nozzles for precise coating application Compact control panel with a double-acting pneumatic cylinder for intermittent spraying of liquid and air Adjustable spray cycle timing for controlled coating application Filter cum moisture separator to ensure a clean coating process Operation & Mechanism: The Bombay Engineering Mini Cota consists of a pressure vessel, which can be optionally provided with an S.S. jacket for sugar coating, controlled heaters, a safety valve, an oscillating-type pneumatic stirrer, and spraying nozzles. It also includes a compact control panel with a pneumatic cylinder, ensuring precise intermittent spraying controlled by a timer. The coating solution is filled into the pressure vessel and pressurized using oil/moisture-free compressed air at 3 to 4 kg/cm², resulting in a uniform, atomized conical spray. The spray guns, mounted on a heavy-duty S.S. stand, can be adjusted as required. The duration of air and liquid spray is controlled by a digital timer and pneumatic cylinder via a solenoid valve. Available Capacities: 25 liters to 100 liters Whatsapp Enquiry
POLISHING PAN
We are leading coating pan manufacturer in mumbai.
Coating Pan machine is consists of an Ellipsoidal pan mounted on a suitable stand and driven by a motor through the right gearbox. The pan is made out of SS 316 and has welded baffles in it. This baffle helps in the tumbling of the tablets/material into the pan while rotating. The speed can be changed by a 3 step pulley or a variable speed drive provided in the control panel. It supplies a hot air blower and the coating pan with heater assembly and a flexible SS pipe, which goes into the pan to dry the tablets/material into the pan after coating. A Control panel helps provide a Starter or variable speed drive, Digital temp controller for controlling temperature.
A spraying system with the pan coating for film coating/sugar coating into the coating pan’s tablets/material. It consists of a suitable capacity pressurized vessel with spray guns mounted on a stand. The liquid into the container is pressurized and sprayed into the coating pan on the coated material. A peristaltic pump helps offer a transfer of fluid into the spray gun and then spread it into the pan.
We provide an exhaust blower as an option for exhausting fumes generated by the liquid spraying into the coating pan’s tablets/material.
A wet scrubber helps neutralize the exhaust fumes before entering the open atmosphere.
Whatsapp Enquiry
Rapid Mixer Granulator
Salient Features:
- cGMP model with contact parts in SS 316 & non-contact parts in SS 304.
- Homogeneous product distribution.
- Pneumatic top lid lifting system.
- Bottom impeller lifting system.
- 3/4 blade main impeller and 4 blade chopper impeller.
- CIP & binder addition system through pump.
- Variable speed drive for main and chopper motors.
- Online Comill at discharge.
- PLC in control panel, 21 CFR compliant.
TABLET DEDUSTER
Overview: Tablet De-Dusting & De-Burring Machine
Bombay Engineering manufactures, supplies, and exports a high-quality range of Tablet De-Dusting & De-Burring Machines designed to remove excess powder and burs from compressed tablets. These machines are built to conform with international standards, ensuring top-notch performance.
Key Features:
✔ Premium Construction: All contact parts are made from SS 304 stainless steel for durability and hygiene.
✔ Efficient Dusting and Cleaning: Utilizes compressed air for effective tablet de-dusting and cleaning.
✔ Compatibility: Can be easily integrated with rotary tablet press machines, making it an ideal solution for fine de-dusting and tablet movement.
✔ Automatic Dust Removal: Features an automatic dust-removal system for continuous, efficient operation.
The Bombay Engineering De-Burring & De-Dusting Machine is built to provide outstanding performance, ensuring clean, dust-free tablets with minimal energy consumption and easy maintenance.
Whatsapp Enquiry
