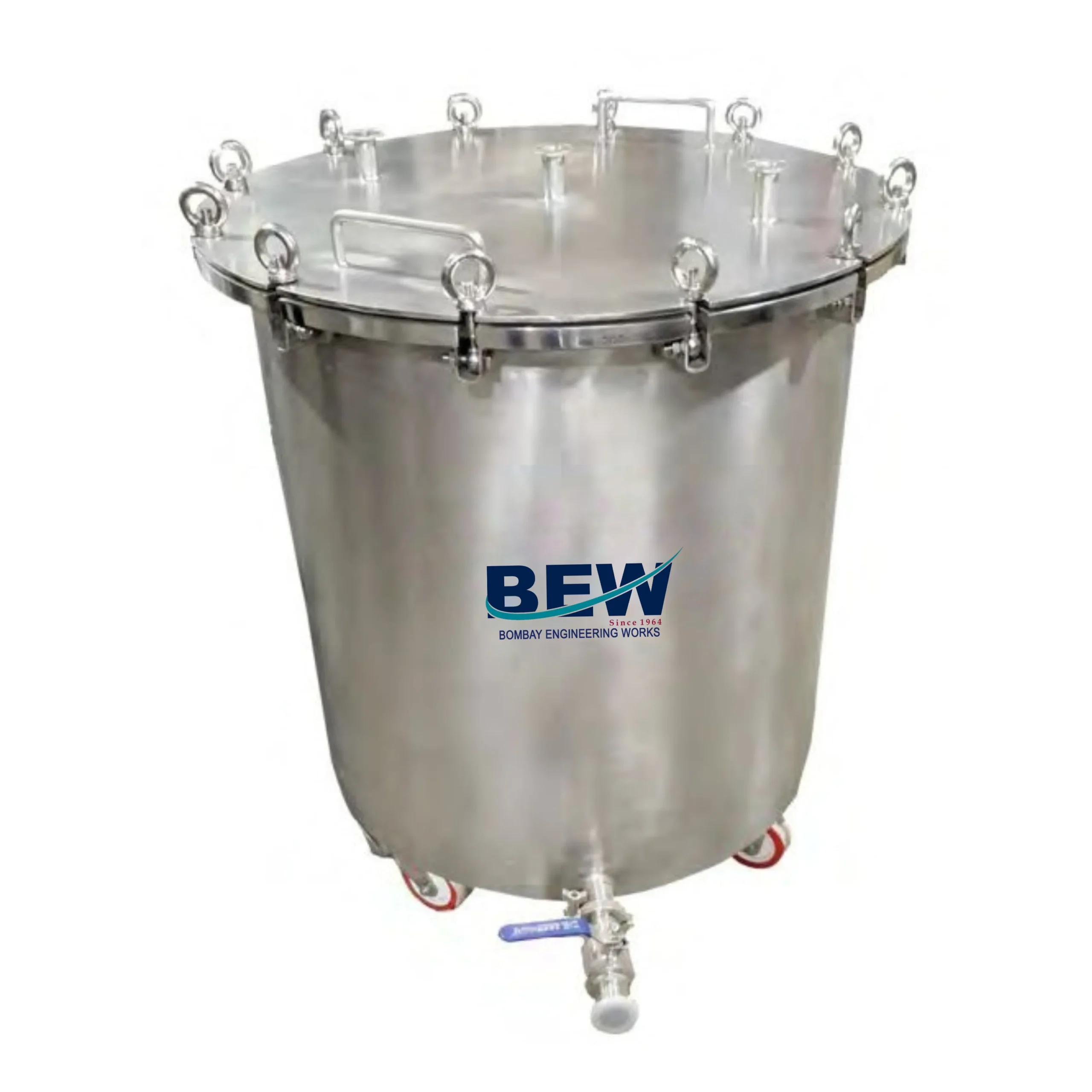

Medicament Holding Vessel
Medicament Holding Vessel is Single Layer vessel with air tight lid provision. It is used to store Medicament once it is prepared in the medicament vessel till it is used in encapsulation machine process. All Valves are Sanitary Design and vessel is Electropolished
