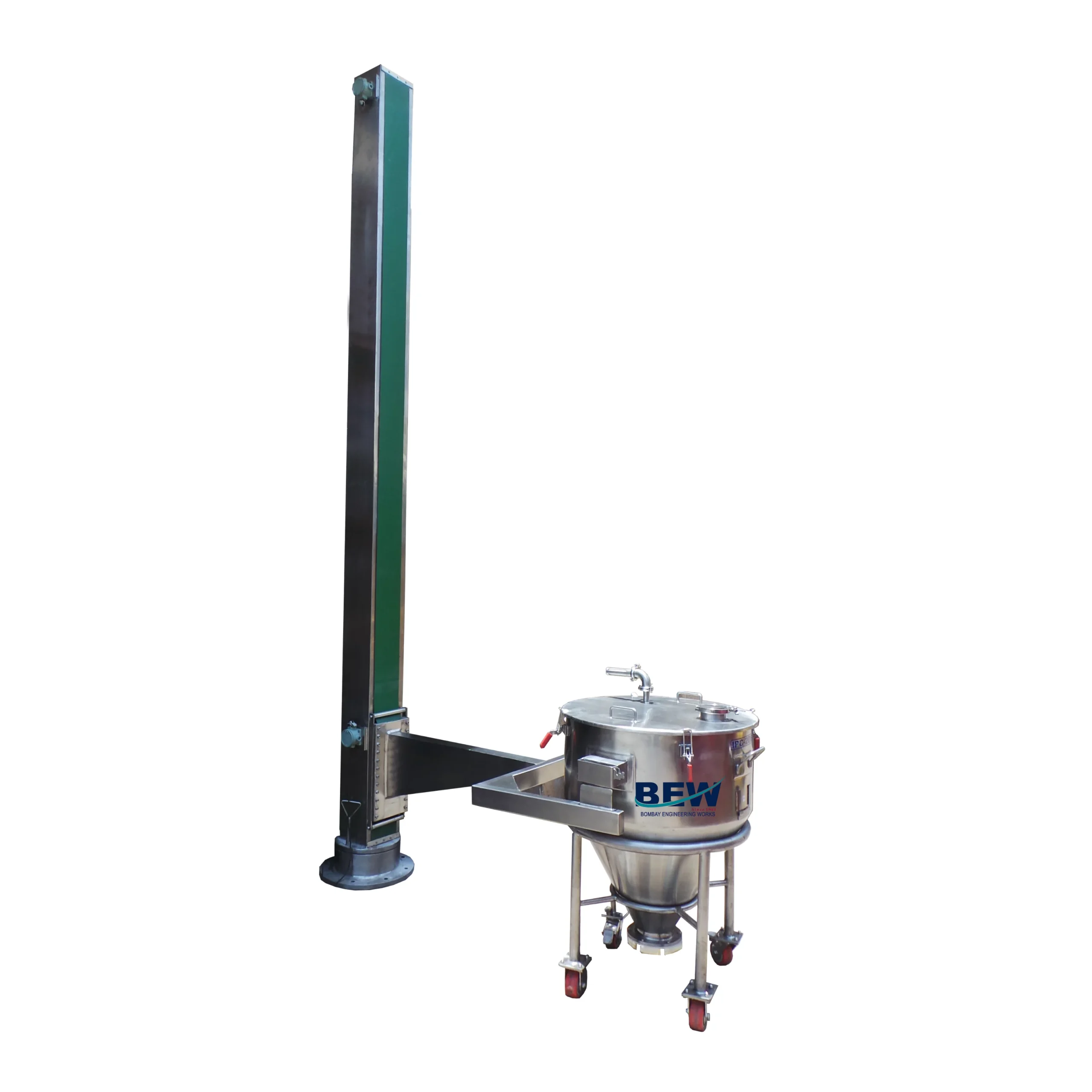

IPC Lifting & Positioning Device
Salient Features:
- Design is cGMP – Current Good Manufacturing Practices compliance.
- All contact parts AISI 316 & non-contact parts AISI 304.
- Capacity available from 30 Kg to 600 Kg.
- Suitable for inline process with Milling and Sifter.
- Suitable for loading material into High Shear Mixer, Blender, Tablet Press, Blister Pack Machines, etc.
- 360-degree swiveling movement of lifting arm.
- Loading height designed as per end user requirement and slab height.
- Structure cladding made of S.S. 304 with matt finished.
- Hydraulic power pack system for lifting.
- If the power goes off, the loader remains where it was.
- Limit switches provided to stop hydraulic drive when stroke is completed.
Related products
Coating Pan
Salient Features:
- SS 316 pan and other contact parts.
- Baffles inside the pan for proper tumbling of the tablets.
- Hot air blower to ensure faster drying of the tablets Gearbox and motor fitted in SS enclosure behind the machine
- Angle of the pan can be changed to suit individual requirements.
- Flameproof motor & electricals available as option.
- Interchangeable pans on the same machine for smaller models.
- Spraying system with solution vessel, pneumatic stirrer, peristaltic pump, and spray nozzle with control panel.
Dust Extractor
Overview:
The Dust Extractor Machine is essential for preventing dust accumulation and avoiding cross-contamination during tablet manufacturing in the pharmaceutical industry. This machine enhances tablet production efficiency by removing dust from punches and dies, minimizing breakdowns, and reducing mechanical strain on tablet-making equipment.
Key Features:
✔ Effective Dust Removal: Utilizes a shaking mechanism to dislodge dust, which is then collected by the dust collection system fans.
✔ Ease of Maintenance: Fan and filter compartments are easily accessible through doors for quick inspection and maintenance.
✔ Cross-Contamination Prevention: Helps control flying dust generated during tablet compression and minimizes cross-contamination risks.
Advantages:
✔ Tool-Free Dismantling: The machine can be fully dismantled without tools for easy and fast cleaning.
✔ Low Noise Level: Operates with very low noise, making it user-friendly.
✔ Low Maintenance: Requires minimal upkeep, ensuring consistent performance.
✔ Easy Mobility: Mounted on castors for easy handling and quick connection to auger powder filling machines, rotary tablet presses, or de-dusters.
✔ Easy Integration: Easily integrates into process lines and can be connected to tablet presses without hassle.
✔ Optional Flame-Proof Electrical Components: Available with flame-proof electrical components for added safety.
The Dust Extractor Machine by Bombay Engineering ensures a clean, efficient, and safe tablet manufacturing environment, reducing dust hazards, mechanical strain, and cross-contamination risks.
Whatsapp Enquiry

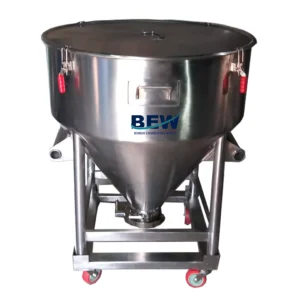

IPC Bins
