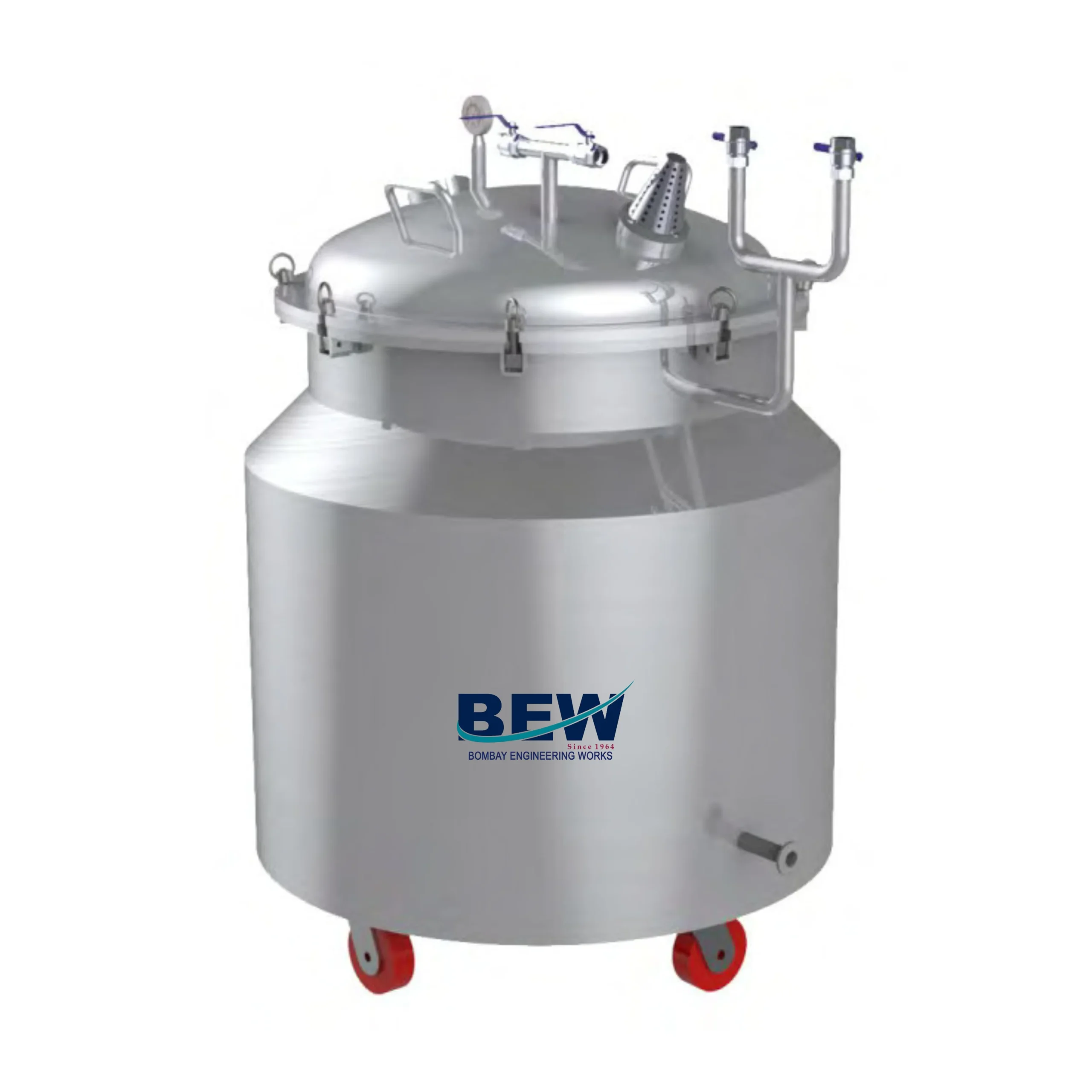

Gelatin Receiver
GELATIN Receiver is a Triple layer vessel portable type with electrical heating in the jacket. The vessel is closed type and is used to storge hot gelatin mass and it keeps it hot till It is used for encapsulation machine process. Sturdy jacket and insulation ensures zero heat loss and all necessary nozzles for N2 purging and material inlet, outlet etc are provided. CIP system is inbuilt. PU Wheels are provided for Movement. Vessel is Electropolished.
Related products
Automatic Liquid Filling Line
STANDARD LIQUID FILLING LINE CONSISTS OF:
Rotary Bottle Washing Machine: Rotary Bottle washing machine comes in 64 & 96 bottles per minute.
Turntable: Available in 24", 30", 36" & 48" dia.
Liquid Filling Machine: Available in 2 head, 4 head, 6 head, 8 head, 10 head & 12 head. Filling Range from 5 ml to 1000 ml with help of change parts. Liquid filling machine is available in Volumetric type, Servo Filling type, Flowmatic type, Piston type etc., as per application & requirement.
Capping Machine: Available in single head, four head, six head, 8 head & 10 head. Suitable for both Screw Capping & Ropp Capping with help of change parts. Attachment for inner plug pressing also provided if required.
Inspection Table: Available in 2, 4, 6, and 8 operators as per filling line model.
Labeling Machine: Available in Sticker Labelling (Round and Double Sided or Combo) and Wet Glue Labelling.
Batch Coding: Inkjet online batch coding for online batch coding.
Packing Conveyor Belt: Available in 6 ft, 8 ft, 10 ft, 12 ft up to 24 ft, as per requirements, with endless food-grade belt and variable speed drive.
Bottle Labeling Machine
Salient Features:
- S.S. GMP Model.
- No Bottles – No labeling system.
- Machine Advantage: No change parts are required to change any bottle & label sizes.
- In your particular case, offer a machine with a Touch code printer to print Mfg. Expiry, Batch No. etc.
- Labeling Capacity: 60 to 80 Bottles/Minute (Depending upon Labels & Bottles).
- Stepper Motor: 60 Kg/cm2
- Programmable MMI Unit: Standard (Our programming).
- A.C. Frequency drive for conveyor & pressing device.
- Total synchronized with stepper motor & A.C. motor with single speed variator port.
- Applicator height is adjustable as per customer requirement to change labeling position on the bottle.
- It has an inbuilt speed indicator & counter.
- No change parts are required to be changing any container & label sizes, hence only one-time investment.
Coating Pan
Salient Features:
- SS 316 pan and other contact parts.
- Baffles inside the pan for proper tumbling of the tablets.
- Hot air blower to ensure faster drying of the tablets Gearbox and motor fitted in SS enclosure behind the machine
- Angle of the pan can be changed to suit individual requirements.
- Flameproof motor & electricals available as option.
- Interchangeable pans on the same machine for smaller models.
- Spraying system with solution vessel, pneumatic stirrer, peristaltic pump, and spray nozzle with control panel.
Online Visual Bottle Inspection Machine
Online Visual Bottle Inspection Machine is a three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. The inspection table has a stainless steel structure with a moving S.S. slat chain. Design made out of S. S. square pipe & supported on adjustable bolts.
Online Visual Bottle Inspection Machine
The Bombay Engineering’s Inspection table consists of two (Single Side seating arrangements) or three (Double Side seating arrangements) tracks conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color.
Operation:
The central conveyor belt brings the bottle from the capping/washing machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. In turn, the operators pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any partials in the Liquid filled, sealed & breakage of the bottle. After inspection, the bottles are placed in the central track, which is transfer for labelling.
Whatsapp Enquiry
POLISHING PAN
We are leading coating pan manufacturer in mumbai.
Coating Pan machine is consists of an Ellipsoidal pan mounted on a suitable stand and driven by a motor through the right gearbox. The pan is made out of SS 316 and has welded baffles in it. This baffle helps in the tumbling of the tablets/material into the pan while rotating. The speed can be changed by a 3 step pulley or a variable speed drive provided in the control panel. It supplies a hot air blower and the coating pan with heater assembly and a flexible SS pipe, which goes into the pan to dry the tablets/material into the pan after coating. A Control panel helps provide a Starter or variable speed drive, Digital temp controller for controlling temperature.
A spraying system with the pan coating for film coating/sugar coating into the coating pan’s tablets/material. It consists of a suitable capacity pressurized vessel with spray guns mounted on a stand. The liquid into the container is pressurized and sprayed into the coating pan on the coated material. A peristaltic pump helps offer a transfer of fluid into the spray gun and then spread it into the pan.
We provide an exhaust blower as an option for exhausting fumes generated by the liquid spraying into the coating pan’s tablets/material.
A wet scrubber helps neutralize the exhaust fumes before entering the open atmosphere.
Whatsapp Enquiry
TABLET DEDUSTER
Overview:Â Tablet De-Dusting & De-Burring Machine
Bombay Engineering manufactures, supplies, and exports a high-quality range of Tablet De-Dusting & De-Burring Machines designed to remove excess powder and burs from compressed tablets. These machines are built to conform with international standards, ensuring top-notch performance.
Key Features:
✔ Premium Construction: All contact parts are made from SS 304 stainless steel for durability and hygiene.
✔ Efficient Dusting and Cleaning: Utilizes compressed air for effective tablet de-dusting and cleaning.
✔ Compatibility: Can be easily integrated with rotary tablet press machines, making it an ideal solution for fine de-dusting and tablet movement.
✔ Automatic Dust Removal: Features an automatic dust-removal system for continuous, efficient operation.
The Bombay Engineering De-Burring & De-Dusting Machine is built to provide outstanding performance, ensuring clean, dust-free tablets with minimal energy consumption and easy maintenance.
Whatsapp Enquiry
Tablet Inspection Belt
Salient Features:
- All contact parts are made of stainless steel or synthetic materials such as nylon, ensuring non contamination.
- Nylon endless conveyor belt, apart from having long life, is also washable and easily replaceable type.
- Both conveyor speed and tablet feed are adjustable.
- Extra large hopper for less frequent fillings, with a holding capacity of about 25 to 30 Kg.
- Hopper position is vertically adjustable with a knob.
- Level in the hopper is easily visible to the operators.
- Guide rollers are with double ball bearings, offering smooth motion to the conveyor.
- Special tablet dust filter mesh is provided at the vibrator.
- Dust collecting tray with cleaning brush is also provided below the conveyor.
Zero Hold Up Filter Press
Salient Features:
- Manufactured in SS - 304 / SS - 316 / SS - 316L M.O.C.
- MS / SS jacket can be provided for hot filtration.
- Gives crystal clear filtration by filtering particles up to 1 micron size.
- Scavenger arrangement to remove all the liquid.
- Cake can be dried either by compressed air or by inert gas, steam.
- Filtration rates from 600 LPH to 30000 LPH possible depending on the models.
- Centrifugal / Gear / Roto / Lobe Pumps can be offered.
- Sample collecting device & safety valve provided.
- Complete filtration of the batch without any holdup due to reverse flow of liquid, hence large saving in time & cost.
- Back wash facility can be provided for continuous operations.
- The cake, filter aid & solids remain totally enclosed, allowing filtration of toxic, hazardous & explosive liquids.
- No contamination of internal surface of shell.
- The top dome structure ensures fast & easy removal of cartridge assembly & cleaning of cake.
