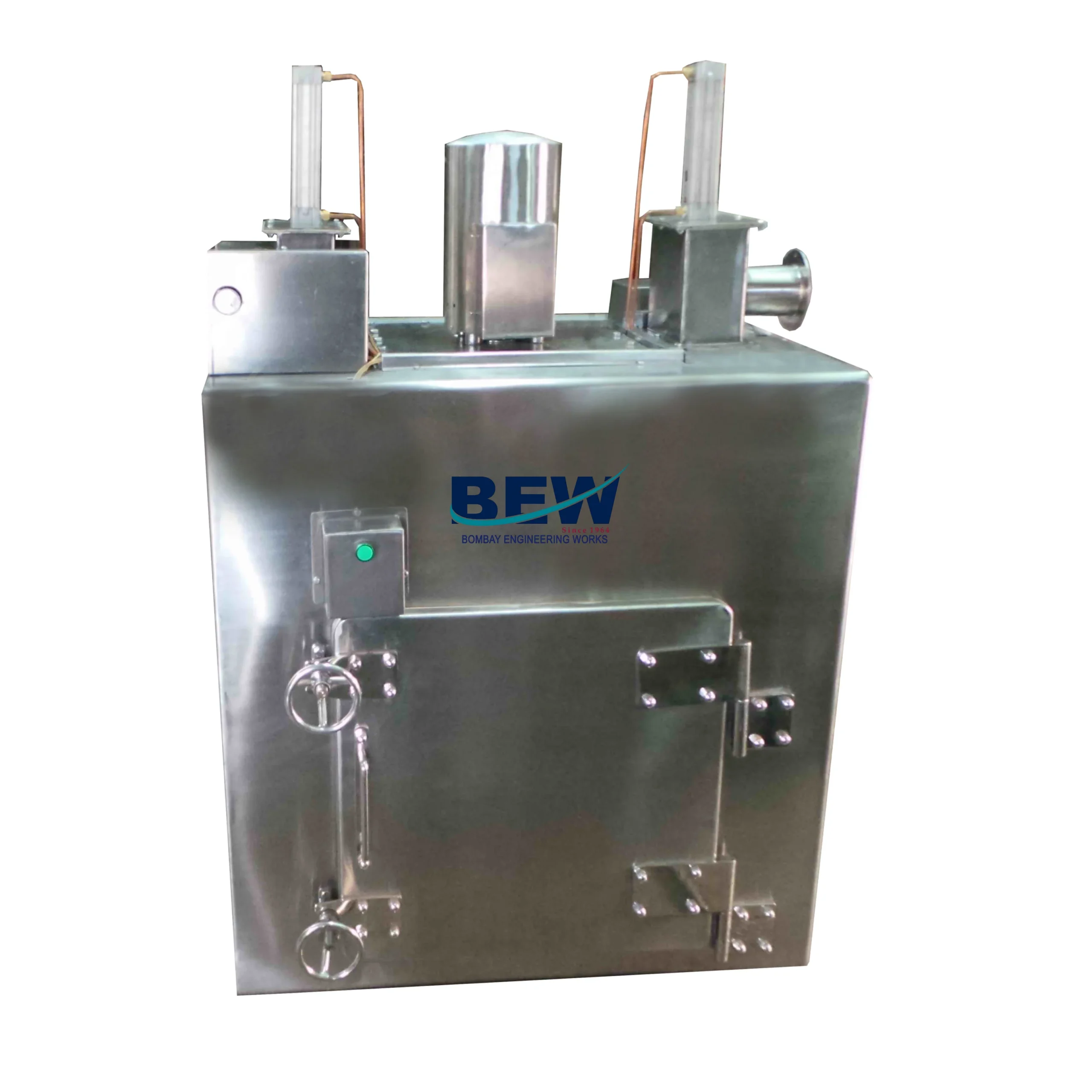

Dry Heat Sterilizer
Salient Features:
- Class 100 sterilization
- Double door construction with silicon rubber gaskets
- 8–16 point temperature validation
- Inlet & outlet through HEPA filters
- High temperature HEPA filters in recirculation chamber
- Special heaters to withstand high temperatures
- Uniform temperature distribution
- Fully automatic PLC-operated control panel
- Customized automation systems
Accessories:
- Trolleys
- Undercarriages
- Ampoule & vial boxes
Description
| Model | DHS – 0.22 | DHS – 0.64 | DHS – 1.2 | DHS – 1.8 |
|---|---|---|---|---|
| Capacity | 225 Liters | 640 Liters | 1200 Liters | 1800 Liters |
| Temperature range | Room temperature to 300°C | Room temperature to 300°C | Room temperature to 300°C | Room temperature to 300°C |
| Clean Level | Class 100 | Class 100 | Class 100 | Class 100 |
| Heating Power | 9 KW | 15 KW | 22 KW | 28 KW |
| Circulating fan power | 0.75 KW | 2.2 KW | 3.0 KW | 4.0 KW |
| Supplementary fan power | 0.18 KW | 0.18 KW | 0.25 KW | 0.25 KW |
| Moisture fan power | 0.18 KW | 0.18 KW | 0.37 KW | 0.75 KW |
| Circulation fan flow | 3500 m3/h | 4600 m3/h | 5500 m3/h | 6300 m3/h |
| Supplementary fan flow | 300 m3/h | 300 m3/h | 408 m3/h | 408 m3/h |
| Operating Chamber (W × D × H) mm | 600 × 500 × 750 | 800 × 800 × 1000 | 1000 × 1000 × 1200 | 1000 × 1200 × 1500 |
| Outer Cabinet (W × D × H) mm | 1650 × 900 × 1750 | 1850 × 1200 × 1950 | 2050 × 1400 × 2150 | 2050 × 1600 × 2450 |
| Control system | HMI based fully automatic functions | |||
| Printer | Thermal printer | |||
| Cooling | Water cooling system | |||
| Construction | 304 Stainless steel (316 optional) | |||
| Doors | Leak proof doors w/ pressurized locking system | |||
| Air Supply | Pressure module with pre filter and HEPA filter to ensure fresh filtered air entry | |||
| Optional | – Strip chart recorder – Provision to attach laser jet printer – Trolley – Trays – Wire baskets – Additional temperature probes | |||
| Note: | Dimensions of Class 100 and Class 1000 dry heat sterilizers are same | |||
