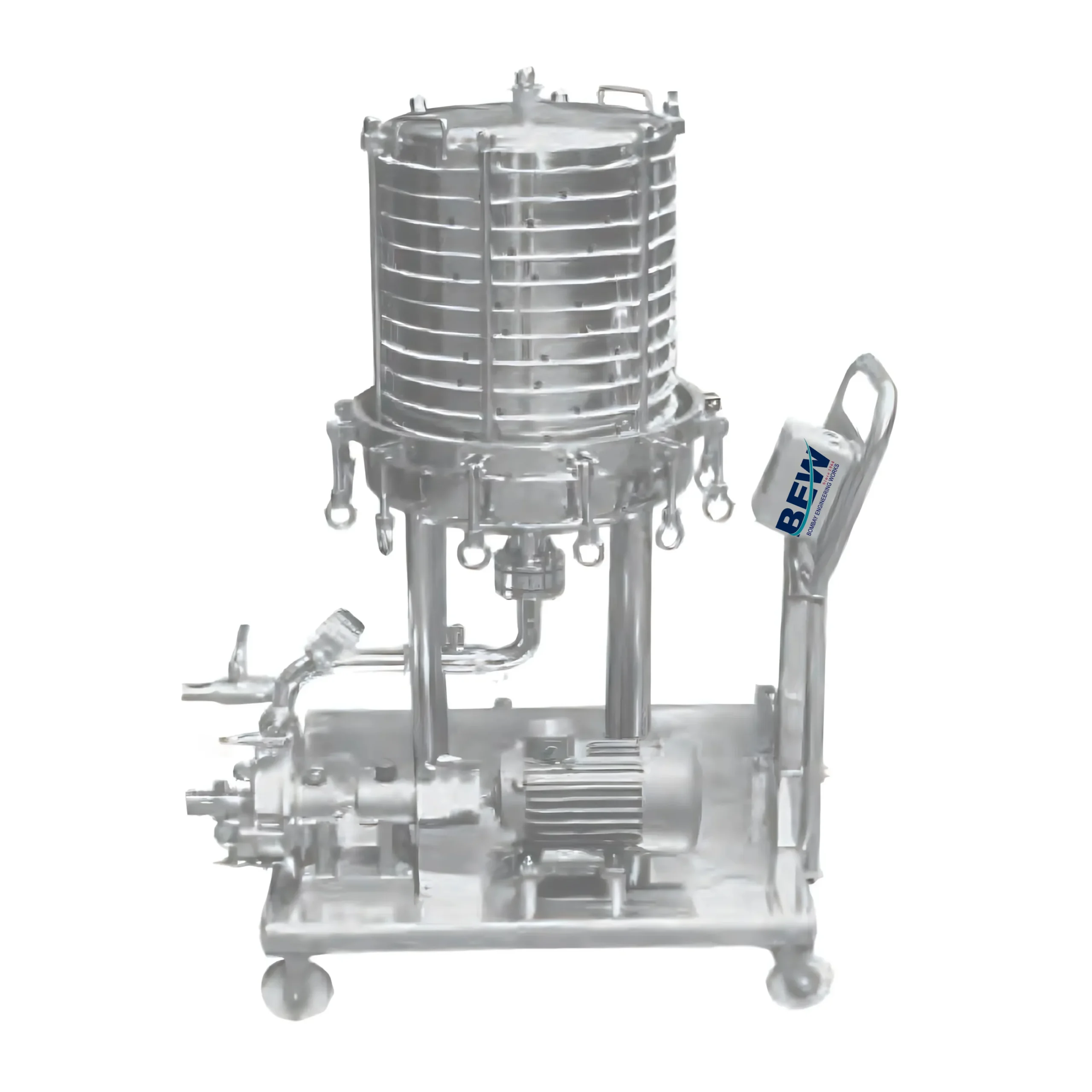

Zero Hold Up Filter Press
Salient Features:
- Manufactured in SS – 304 / SS – 316 / SS – 316L M.O.C.
- MS / SS jacket can be provided for hot filtration.
- Gives crystal clear filtration by filtering particles up to 1 micron size.
- Scavenger arrangement to remove all the liquid.
- Cake can be dried either by compressed air or by inert gas, steam.
- Filtration rates from 600 LPH to 30000 LPH possible depending on the models.
- Centrifugal / Gear / Roto / Lobe Pumps can be offered.
- Sample collecting device & safety valve provided.
- Complete filtration of the batch without any holdup due to reverse flow of liquid, hence large saving in time & cost.
- Back wash facility can be provided for continuous operations.
- The cake, filter aid & solids remain totally enclosed, allowing filtration of toxic, hazardous & explosive liquids.
- No contamination of internal surface of shell.
- The top dome structure ensures fast & easy removal of cartridge assembly & cleaning of cake.
Description
Technical Specification:
| Model | Dia | No. of Plates | Filtering Area (m²) | Cake Holding Capacity (Ltrs) | Flow Rate (Ltr/Hr – Water) | Size & Type of Pump | Motor H.P. |
|---|---|---|---|---|---|---|---|
| BEZH – 8 dia | 8″ | 4 | 0.19 | 1.581 | 400 | Centrifugal ½” | 1 Hp |
| 8″ | 6 | 0.29 | 2.371 | 800 | Centrifugal ½” | 1 Hp | |
| 8″ | 8 | 0.39 | 3.161 | 800 | Centrifugal 1″ | 1 Hp | |
| 8″ | 10 | 0.49 | 3.95 | 1000 | Centrifugal ½” | 1 Hp | |
| BEZH – 14 dia | 14″ | 8 | 1.50 | 21.52 | 1600 | Centrifugal 1″ | 2 Hp |
| 14″ | 10 | 1.88 | 26.91 | 2000 | Centrifugal 1″ | 2 Hp | |
| 14″ | 12 | 2.25 | 32.29 | 2400 | Centrifugal 1″ | 2 Hp | |
| 14″ | 15 | 2.82 | 40.36 | 3000 | Centrifugal 1″ | 2 Hp | |
| BEZH – 18 dia | 18″ | 8 | 1.50 | 45.00 | 3200 | Centrifugal 1½” | 3 Hp |
| 18″ | 12 | 2.60 | 53.60 | 4800 | Centrifugal 1½” | 3 Hp | |
| 18″ | 15 | 3.30 | 67.00 | 6000 | Centrifugal 1¼” | 3 Hp | |
| 18″ | 18 | 3.90 | 80.40 | 7200 | Centrifugal 1½” | 3 Hp | |
| 18″ | 20 | 4.40 | 89.40 | 8000 | Centrifugal 1¼” | 3 Hp | |
| 18″ | 24 | 5.20 | 107.20 | 9600 | Centrifugal 1¼” | 3 Hp | |
| BEZH – 24 dia | 24″ | 15 | 5.60 | 128.10 | 7500 | Centrifugal 2″ | 5 Hp |
| 24″ | 18 | 6.70 | 153.80 | 9000 | Centrifugal 2″ | 5 Hp | |
| 24″ | 20 | 7.40 | 170.90 | 10000 | Centrifugal 2″ | 5 Hp | |
| 24″ | 24 | 8.90 | 205.00 | 12000 | Centrifugal 2″ | 5 Hp | |
| BEZH – 33 dia | 33″ | 15 | 9.50 | 246.00 | 15000 | Centrifugal 2½” | 7.5 Hp |
| 33″ | 18 | 11.40 | 295.30 | 18000 | Centrifugal 2½” | 7.5 Hp | |
| 33″ | 20 | 12.70 | 328.10 | 20000 | Centrifugal 2½” | 7.5 Hp | |
| 33″ | 24 | 15.20 | 393.70 | 24000 | Centrifugal 2½” | 7.5 Hp | |
| 33″ | 33 | 21.00 | 541.30 | 33000 | Centrifugal 2½” | 7.5 Hp |
