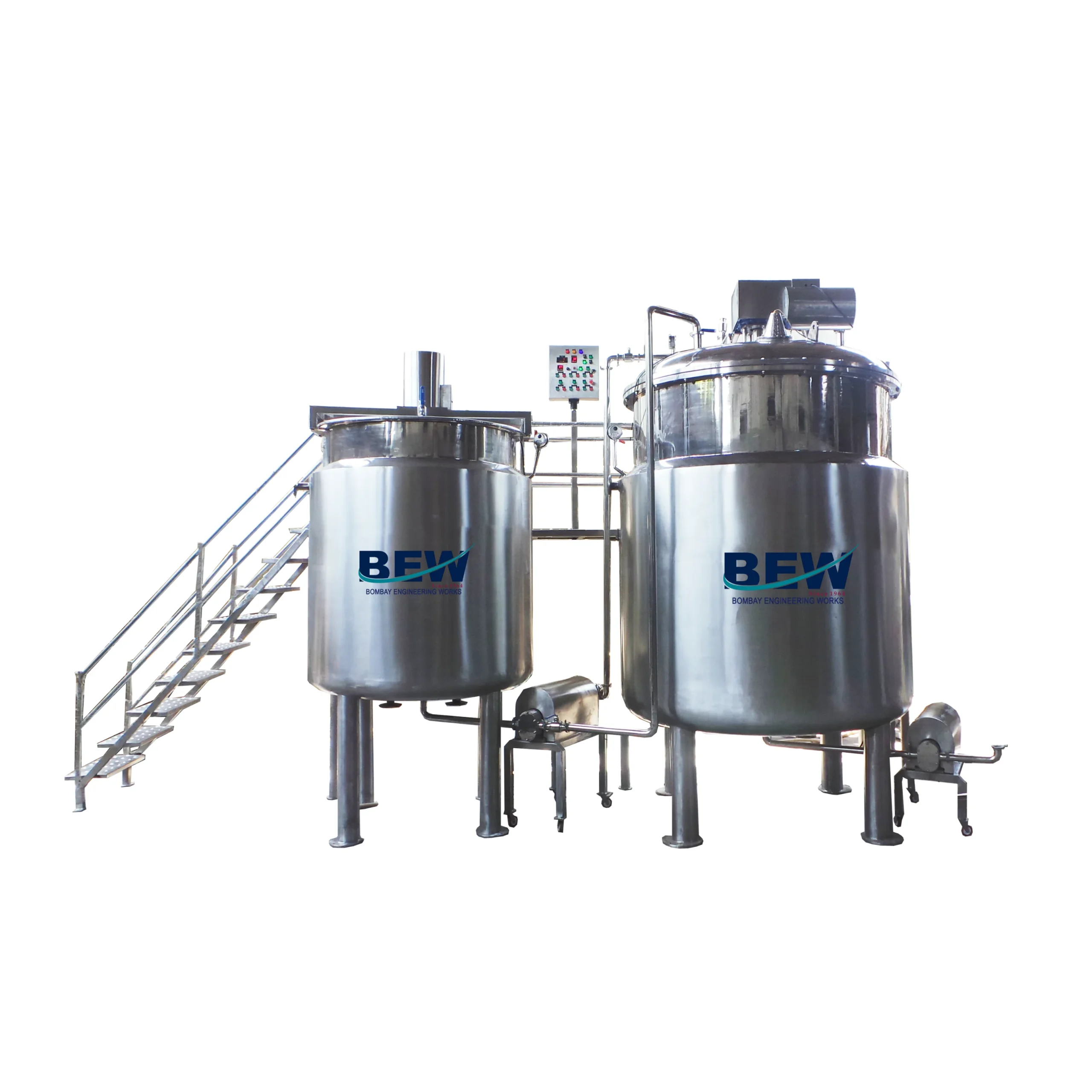

Shampoo Manufacturing Plant
Salient Features:
- All contact parts are in SS 316 & non-contact parts are in SS 304.
- All jackets are in SS 304 and can be electrically jacketed or steam jacketed.
- Special dispersor / anchor agitator in premix vessel.
- Manufacturing vessel with paddle type or contra agitator for excellent mixing.
- CIP spray ball.
- Automatic product transfer through automatic valves (Optional).
- Automatic utility piping and valves (Optional).
- Recipe-based PLC operated control panel with colour touch screen HMI.
25 Itrs to 10000 Itrs / Batch.
Related products
Cartoning machine
- Horizontal cartoning machines
- Vertical cartoning machines
A cartoning machine picks a single piece from a stack of folded cartons, erects it, fills it with a product or multiple products horizontally through an open end, and then seals it by tucking in the flaps or applying glue/adhesive. The product can be pushed into the carton using a mechanical pusher, pressurized air, or manually in some applications. This type of cartoning machine is widely used for packaging foodstuffs, confectionery, medicines, cosmetics, and other consumer goods.
A vertical cartoning machine, also known as an end-load cartoner, erects a folded carton, fills it with a product or multiple products from the top through an open end, and then seals it by tucking the flaps or applying glue/adhesive. These machines are commonly used for packaging bottled foodstuffs, confectionery, medicine, and cosmetics, with variations suited for different business scales.
The Bombay Engineering cartoning machine picks a single carton from a stack, erects it, fills it horizontally with a product or multiple products, and then seals it by tucking in the flaps or using glue/adhesive. The product insertion can be done via a mechanical or pneumatic pusher, or manually when required. These machines are widely used in food, confectionery, medicine, and cosmetics industries.
Key Specifications:
- Maximum speed: Up to 120 cartons/min
- Maximum carton width: 175 mm
- Maximum carton length: 100 mm
- Standard operating speed: Up to 70 pcs/min
- Intermittent motion mechanism for efficient operation
- Optional automatic product feeding using Geneva or Ferguson Indexers
- Adjustable chain system for varying carton sizes
- No Carton-No Product interlock system for safety and efficiency
- Stainless steel side covers with polycarbonate top covers and microswitch safety features
- PLC-controlled system for automation
- Power requirement: 2 HP
- Compatible with bundling and shrink-wrapping machines
Hair Oil Manufacturing Plant
Salient Features:
- All contact parts are in SS 316 & non-contact parts are in SS 304.
- Choice of jacketed vessels or plain vessels as per formulation.
- Special mixing blades for proper mixing.
- Decoction vessel with higher heat transfer area for proper extraction of active ingredients.
- Filter press is zero hold up type GMP model with pump and motor.
- Hair oil manufacturing plant can be closed type fully automatic or semi-automatic as per requirements.
Ointment Manufacturing Plant
Salient Features:
- cGMP Model with contact parts in SS316.
- Fully automatic process untouched by human hands.
- Process conducted under full vacuum.
- Triple jacketed vessels suitable for heating and cooling.
- All fittings and valves are sanitary design.
- Conical filters below water & wax vessels for online filtration.
- Options for top and bottom agitator assembly in all vessels.
- Hydraulically lifting top dish.
- Specially designed 2 & 4 stage bottom entry homogenizer or inline homogenizer provided.
- PLC based control panel, 21 CFR compliant.
- Electropolished pipeline.
- Option for load cell.
- Option for automatic valves and utilities.
Shaving Cream Manufacturing Plant
Salient Features:
- All contact parts are in SS 316 & non-contact parts are in SS 304.
- All jackets are in SS 304 and can be electrically jacketed or steam jacketed.
- Choice of top and bottom agitators in water and wax vessels.
- Manufacturing vessel with variable speed drive, hydraulic lifting, and with choice of 2 or 3 agitators.
- Choice of double contra, fixed contra agitators, or planetary.
- Variable speed drive for all agitators (Optional).
- Special imported design high-speed homogeniser/emulsifier to give excellent emulsification (one of the best in the industry).
- CIP spray ball.
- Automatic product transfer through automatic valves (Optional).
- Automatic utility piping and valves (Optional).
- Recipe-based PLC operated control panel with colour touch screen HMI.
R&D-1 kg to 5 kg/ Batch
Pilot Plant from 10 kg to 50 kg/Batch
Production Models from 50 kgs to 10000 kgs / Batch
Toothpaste Manufacturing Plants
Salient Features:
- All contact parts are in SS 316 & non-contact parts are in SS 304.
- All jackets are in SS 304 and can be electrically jacketed or steam jacketed.
- Special dispersor agitator in gel premix vessel.
- Manufacturing vessel with hydraulic lifting and double contra rotary agitators.
- Variable speed drives for both outer and inner agitator.
- Special imported design high-speed homogeniser/emulsifier to give excellent emulsification (one of the best in the industry).
- CIP spray ball.
- Automatic product transfer through automatic valves (Optional).
- Automatic utility piping and valves (Optional).
- Recipe-based PLC operated control panel with colour touch screen HMI.
