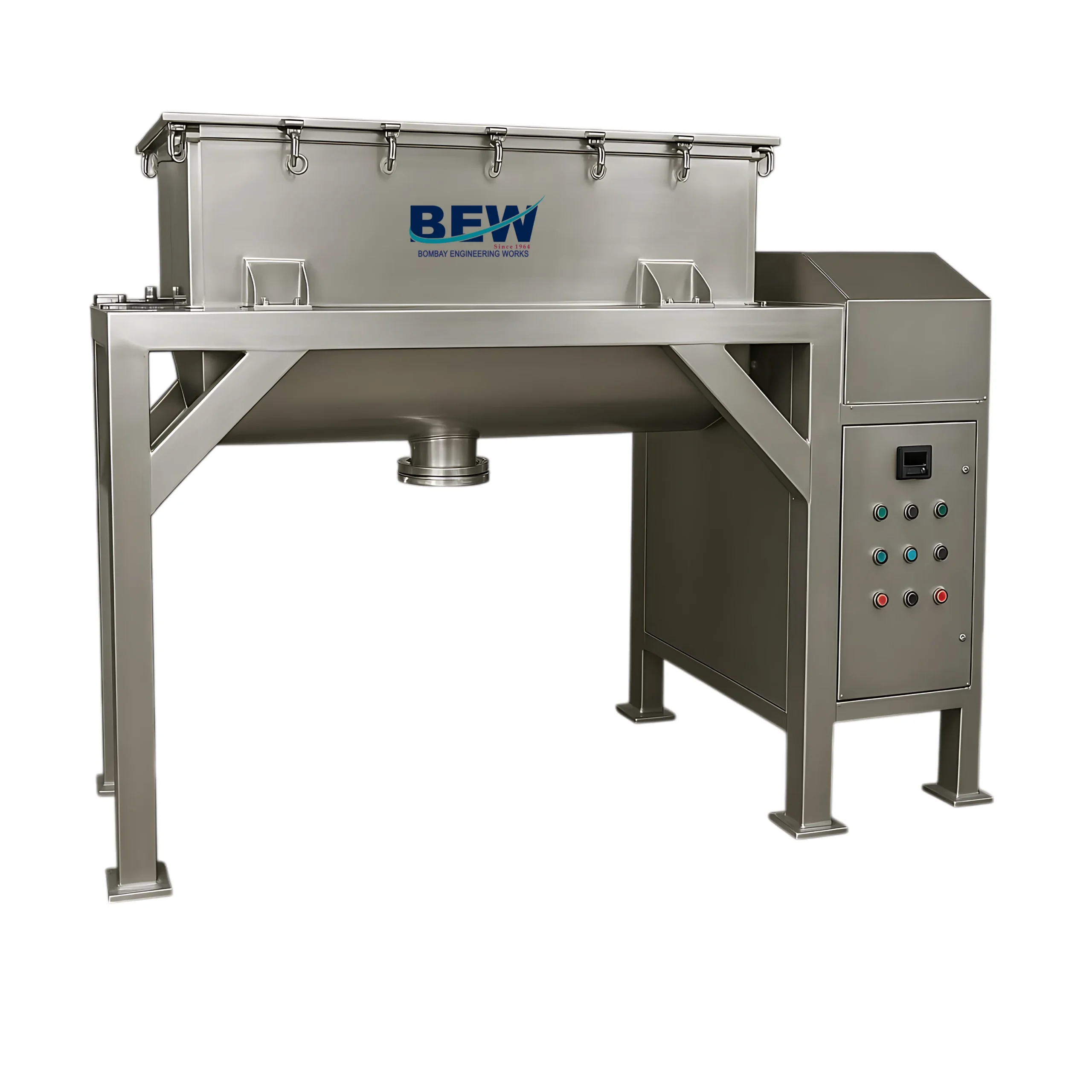

Ribbon Blender
Salient Features:
- Suitable for mixing dry powders & granules.
- U shaped trough with Single / Double / Triple Helical Blades.
- All contact parts are made out of S.S.316 quality material.
- Suitable seals to prevent black particles into the material.
- Bottom discharge for fast unloading with butterfly valve.
- Spraying system provided as option.
- Variable speed drive for motor as option.
- Direct powder loading by vacuum transfer system as option.
- Jacketed trough available as option.
Description
Technical Specifications
| Models | 20 ltrs | 50 ltrs | 100 ltrs | 300 ltrs | 500 ltrs | 1000 ltrs | 2000 ltrs |
|---|---|---|---|---|---|---|---|
| Motor Hp | 1.5 hp | 2 hp | 3 hp | 5 hp | 7.5 hp | 10 hp | 15 hp |
| RPM | 30 rpm | 30 rpm | 30 rpm | 30 rpm | 30 rpm | 20 rpm | 20 rpm |
| Capacity in Kgs | 10 kgs | 30 kgs | 60 kgs | 180 kgs | 300 kgs | 600 kgs | 1200 kgs |
Capacities up to 10,000 ltrs available.
